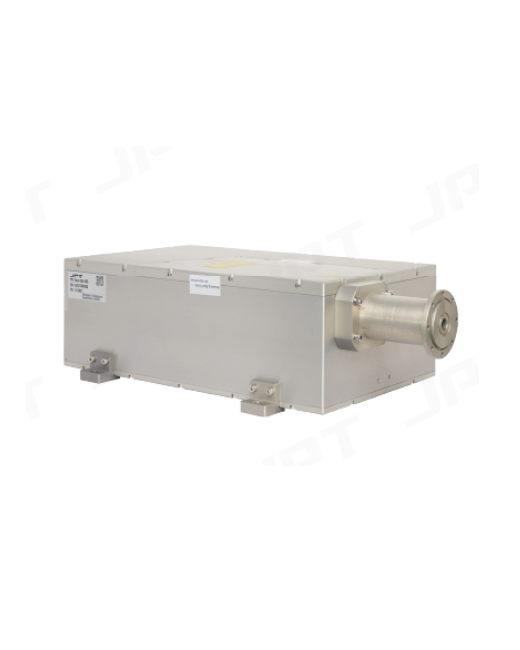

JPT Seal-355-20S DPSS Laser (>20W@60kHz, 40kHz-300kHz)

Application

Photoelectric integration, Anti-interference, One-button start

Compact size, saving installation space

Air self-purification system

Fully sealed structure, without fear of high temperature, high humidity environment

Specification

Wavelength: 355 nm

Average power: >20W@60kHz

Pulse duration: <20ns@60kHz

Frequency Range: 40kHz-300kHz

Spatial mode: TEM00

Beam quality: M² ≤ 1.2

Beam circularity: >90%

Beam full divergence angle: ≤2mrad

Beam diameter: 0.6 ± 0.15mm

Polarization ratio: > 100:1

Polarization orientation: horizontal

Average power stability: RMS ≤ 3% @ 24hrs

Pulse to pulse energy stability:  RMS≤5%@60kHz

Operating temperature: 0~40℃

Storage temperature:  -15~50℃

Cooling method: water-cooled

Supply voltage: DC 36V

Cooling Capacity Requirement: 1000W

Dimension (W x D x H): 400 × 205 × 124mm

Weight: 15 kg

Seal-355-20S UV DPSSL adopts an integrated structure design. Combining the optical unit with external driving circuit, which makes that the product has a strong anti-interference capability. The optical unit and circuit are fully sealed. It is fully capable of working in high temperature and humidity environment. LBO electric point switching function ensures the product’s longer service life.
