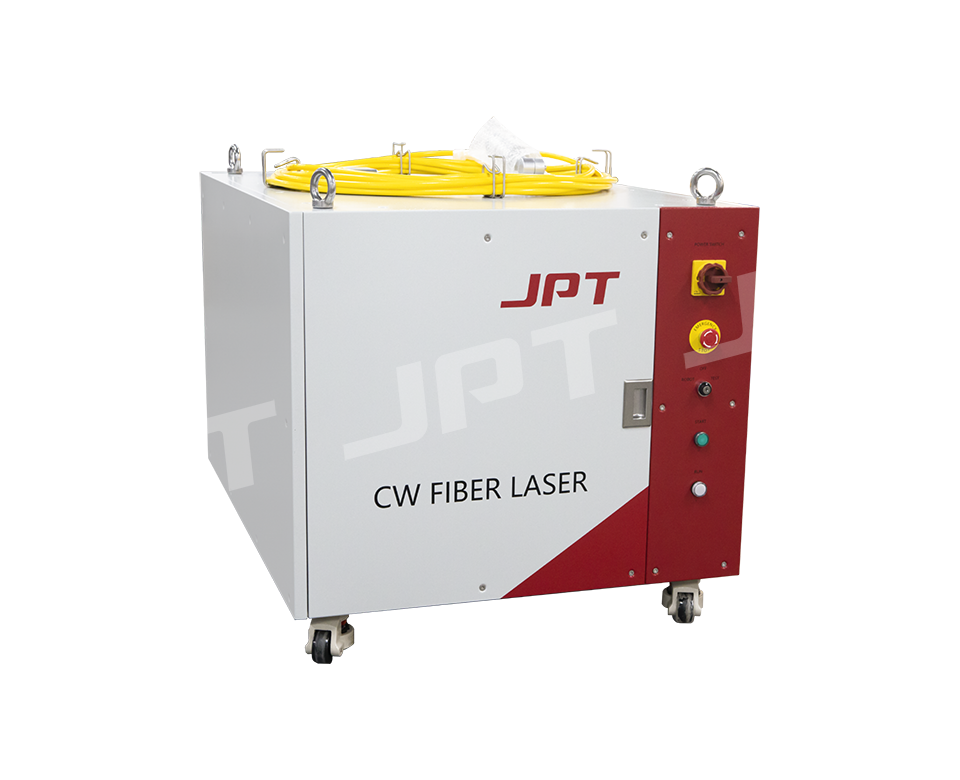

JPT CW 6000W CW Fiber Laser (6000W, 1080 ±10nm)

Application

Laser Cutting

Laser Welding

Surface Modiffed

Laser Cleaning

Specification

Nominal Average Output Power (W): 6000

Beam Parameter Product (mm*mrad): 3.2-4 @100μm

Central Emission Wavelength (nm): 1080±10

Spectral Width @3dB (nm): <6

Armored Cable Length (m): 25

Cooling method: Water Cooled (Purified Water)

Operating voltage (V): 380(AC)±10%

Maximum power consumption (W): 20000

Switch on/off time (us): <20

Maximum modulation frequency (kHz): 5

Operation Temperature (℃): 10 ~ 40

Storage temperature (℃): -10 ~ 60

Net weight: 120 kg

Size (W x D x H): 911×370×709 mm
