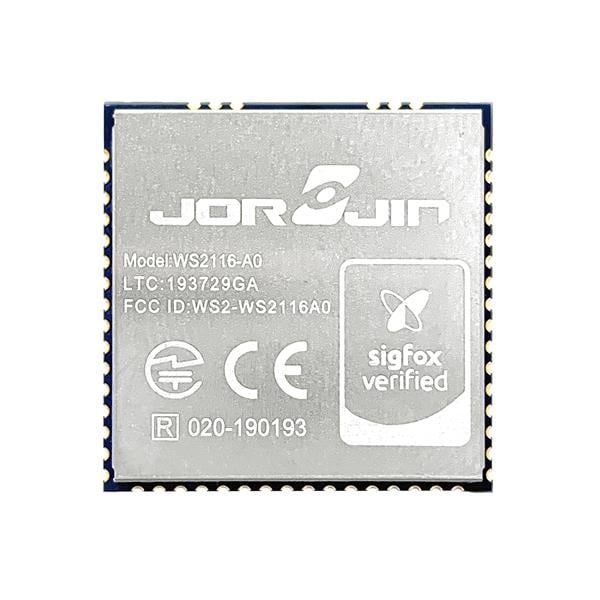

Jorjin WS2116-A0 ມູດູນ Bluetooth ອີງຕາມ STM BlueNRG-2 + S2-LP ແລະ ສະໜອງການສະໜອງ Sigfox ແລະ BLE5.0

Core: ARM Cortex M0

Data Rate: 500 kb/s

Frequency: 860 MHz to 943 MHz, 2.4 GHz

Dimensions: 22 mm x 22 mm x 2.8 mm

Modulation: 2-FSK/GFSK, 4-FSK/GFSK, ASK, OOK

Memory Size: 256 kB, 24 kB

Output Power: 8 dBm, 27 dBm

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: Sub GHz

Receiver Sensitivity: - 88 dBm, - 130 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Operating Supply Voltage: 1.7 V to 3.6 V

Supply Current Receiving: 8.8 mA

Supply Current Transmitting: 15.1 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
