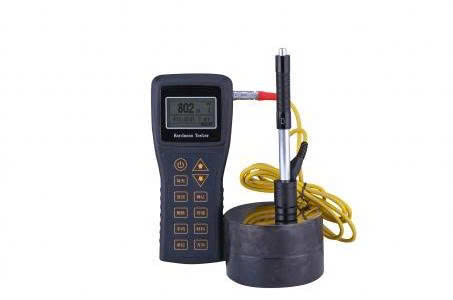

Johoyd SHL-150 ເຄື່ອງທົດສອບຄວາມແຂງ Leeb ພັດທະນາໄດ້ (HLD (170～960) HLD)

General parameters

Measuring range: HLD (170-960)HLD

Measurement direction: 360°

Hardness system: Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore

Display: LCD, 128×64 graphics dot matrix LCD

Data storage: Thermal print head, quiet, ready to print measurement results

Limit setting range: Same as measurement range

Charger: 5VDC, 220VAC

Charging time: 2 to 3.5 hours

Battery: 3.7V, (1400mAh) Lithium Battery

Ambient temperature: 0～40°C

Storage temperature: -25 to 70°C

Working hours: About 100 hours (without backlight)

Communication interface: USB

Dimensions: 179×77×35mm (main part)

Weight: About 175g (main part)

Standard configuration

Main part: 1

D type impact device: 1

Small support ring: 1

Nylon Brush (I): 1

High value Leeb hardness block: 1

Charger: 1

Communication cable: 1

Features

Display: Full English display, menu type operation, simple and convenient operation. The white backlight shows that it is convenient for use in dark environment.

Data communication: With USB interface, a variety of communication methods meet the needs of different users.

Measurement function: A main engine can be equipped with 7 different impact devices. It does not need to recalibrate when replacing, and automatically identify the type of impact device.

Data storage: It can store 48~350 groups (impact times 32~1) single measurement value, average value, date of measurement, direction of impact, frequency, material, hardness system and so on.

Alarm output: The upper and lower limits of hardness values can be set in advance, automatic alarm is out of range, and it is convenient for users to batch test.

Calibration: It has the function of calibrating the value software.

Battery: Built in high-performance lithium battery and charging control circuit, with ultra long working and standby time. Liquid crystal display battery logo, real-time display of the remaining electricity.

Software: According to the requirements of users, it can be equipped with microcomputer software, which is more powerful and can meet the higher requirements of quality assurance activities and management.
