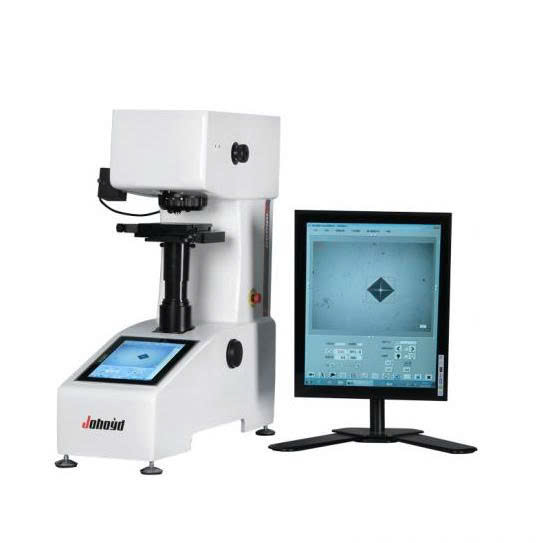

Johoyd PCAHVST-1000ZXY ເຄື່ອງທົດສອບຄວາມແຂງຂອງຊີ້ນນ້ອຍ (10~1000gf, HV0.01~HV1)

Technical parameters:

Microhardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Display: 10-inch touch screen

Test force (gf): 10, 25, 50, 100, 200, 300, 500, 1000

Load control: Automatic (load/hold/unload)

Test force holding time (s): 5～60

Test force selection: External force selection knob, test force is automatically displayed on the touch screen

Objective magnification: 10×，40×

Optical channel: Dual light channel (eyepiece and CCD camera channel)

Hardness measurement range: (5-3000)HV

Maximum specimen height (mm): 150

Maximum specimen width (mm): 120 (distance from the center line of the pressure head to the machine wall)

Power supply voltage: AC220V/50HZ

Weight (kg): 50
