Technical Parameters:
Optical system: infinity chromatic aberration correction optical system
The magnification range is 50X ~ 1000X
Eyepiece 10X large field of view, high eye point plan eyepiece, field of view Φ20mm
Long working distance infinity plan objective lens: 5X; 10X; 20X; 50X (other magnification objectives are optional)
Observation tube hinged binocular observation tube, 45° tilt, 360° rotatable, can increase the eye point height by 50mm; pupil distance adjustment 48 ~ 76mm
Digital interface: built-in, rear, 0.5 times C interface, separate light splitting
Position the four-hole converter in the objective lens converter
Coaxial coarse and fine focusing device for coarse and fine focusing, the coarse adjustment stroke is 12mm, each circle is 0.2mm, the division value is 2μm, and the coarse adjustment has elastic adjustment
The stage mechanically moves the stage, with an area of 180×155mm, a moving range of 50mm×50mm, and a vernier scale of 0.1mm
Lighting system: Kohler lighting, 5W LED long-life lamp, 5~12V low voltage input, adjustable brightness;
Power supply: It can be powered by external power supply devices such as power banks, laptops, mobile phones, car chargers, etc.
Polarizing device: polarizer, analyzer
Main functions and features:

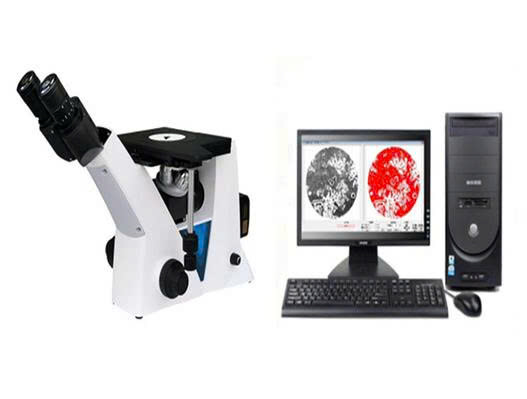

The instrument is equipped with a CCD camera system, which can collect metallographic maps in real time, which is convenient for multiple people to observe, compare, analyze and research on site, and perform calibration comparison, rating and fixed-time printing;
The image can be processed, edited, saved and output by the computer (such as printing, etc.) or entered into the multimedia system and e-mail;
The system is also equipped with professional quantitative metallographic image analysis computer operating system software to perform real-time measurement, rating (in compliance with national standards and other relevant industry standards), analysis, statistics and output graphic reports on the collected sample maps;
The system configuration is scientific and easy to operate. It is widely used in enterprises and institutions such as industrial and mining, quality inspection, scientific research and teaching.
The digital camera is located at the back of the microscope and does not interfere with the user's normal operation of the observation object.
180×155mm large size mechanical mobile stage, making your sample selection more extensive
Butterfly-shaped binocular design, the lens barrel can be rotated 360° to increase the height of the eye point, which is convenient for people with different sitting heights
5-12V low voltage input to ensure product safety
You can also use external power supplies such as power banks and car chargers to power the microscope, which greatly facilitates the use of microscopes in the field
Polarized light observation accessories, polarizer and analyzer are used for simple polarized light observation
