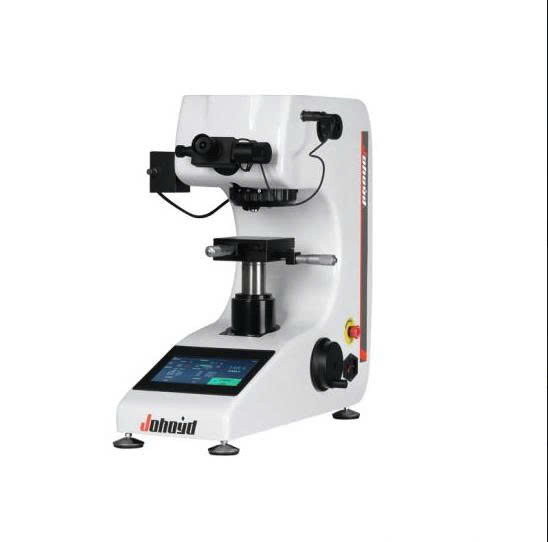

Technical Parameters:
Micro hardness scale: HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display: 7-inch LCD touch screen
Test force (gf): 10,25,50,100,200,300,500,1000
Loading control: Automatic (load/hold/uninstall)
Test force retention time (s): 5 to 60
Test force selection: External force selection knob, the test force is automatically displayed on the 7-inch LCD touch display
Objective magnification: 10×, 40×
Optical channel: Dual light channels (eyepieces and CCD camera channels)
Optical system:
1. Manual micrometer eyepiece;
2. Total magnification (μm): 100 × (observation), 400 × (measurement);
3. Measurement range (μm): 200; 4. Resolution (μm): 0.25
Hardness measurement range: (5-3000) HV
XY test platform: Size (mm): 100×100
Travel range (mm): 25×25
Minimum reading (mm): 0.01
Maximum height of specimen (mm): 90
Maximum width of specimen (mm): 120(distance from the center line of the indenter to the wall)
Voltage: AC220V/50HZ
Weight (kg): 35
Dimensions: (400*290*480))mm
Standard configuration:
1. Host ( Micro Vickers indenter x1, 10x objective x1, 40x objective x1)
2. Test platform, weight, microscope accessory box;
3. Weights x6
4. Weight bar x1
5. Cross table x1
6. Sheet clamping table x1
7. Flat mouth clamping table x1
8. Filament holding table x1
9. Level meter x1
10. Screwdriver x2
11. Horizontal adjustment screws x4
12. External power cord x1
13.10× Digital Micrometer Eyepieces x1
14. Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each )
15. Fuses (1 A) x2
16. Product certification x1
17. Product Instruction Manual x1
18. Dust cover x1
Main functions and features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, the vision is comfortable, and it is not easy to fatigue for a long time operation.
2. The 7-inch LCD touch screen can display the hardness value, converted hardness, test method, test force, brightness, holding time, measurement times, statistical data, upper and lower limits measurement range, test time and other test processes intuitively;
3. The system comes with a calibration function, which can manually adjust the input error calibration instrument;
4. Adjustable range of optical system brightness: 0-100;
5, can store up to 100 sets of test data;
6. The unit of test force can be selected and converted manually. The conversion unit is: (Kgf, N)
7, can display simultaneously: maximum, minimum, average, maximum error, sample difference;
8. The main interface can display 4 conversion scales at the same time and can be switched: national standards, American standards and international standards. A total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK , HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;
9. The upper and lower limit measurement range can be set and displayed on the main measurement interface;
10. The measuring scale can be converted into HK Knoop hardness;
11. The operating system can be converted between Chinese and English;
12, optional built-in printer, test data can also be exported to U disk via USB for analysis;
13. The one-shot molding structure of the cast aluminum shell is stable and not deformed. The pure white automobile paint has a high grade and strong scratch resistance.
14. Our company has the capability of independent research and development, design, production and processing. Our machines provide parts replacement and maintenance upgrade services for life;
The main purpose and scope of application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafer
