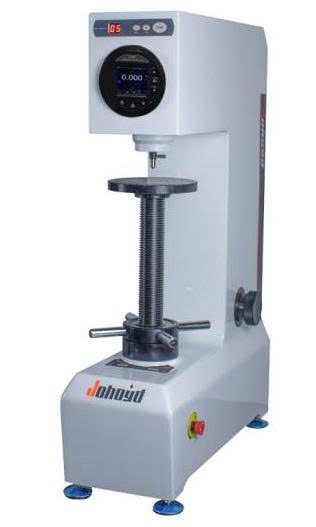

Johoyd HR-150DTS ເຄື່ອງທົດສອບຄວາມແຮງ Rockwell (60kgf ~ 150kgf)

- Technical Parameters:

Initial test force: 10kgf(98.07N)

test force: 60kgf(588N), 100kgf(980N), 150kgf(1471N)

Rocky ruler: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK

Measuring range:

 + HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77

 + HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100

Data output: Digital disply

Executive standard: GB/T230.1, GB/T230.2, JJG112

Maximum height of the test piece: 230mm

Indenter - outside wall distance: 160mm

Power supply: AC220V+5%,50~60Hz

Dimensions (mm): 520*200*765

Host weight: Around 70Kg

Main features and features:

1. The hardness value can be read directly through the digital display screen with a resolution of 0.1, and the measured result is higher than the national standard;

2. It can directly convert HV and HB hardness units;

3. Very low power consumption, long use time, digital display meter head adopts CR2450 battery power supply;

4. With time display function;

5. With data output function, it can be connected to an external computer or a mini printer in series;

6. The shell is made of one-time molding and casting by a special sand-finding process, the structure is stable and does not deform, and it can work in a relatively harsh environment; the car paint has high grades, strong scratch resistance, and it is still bright as new after years of use;

7. Test force: applying, holding and unloading are automatically completed;

8. We have the ability to develop, design, produce and process by ourselves, and provide parts replacement and maintenance upgrade services for our machines for life.

Main use and scope of application:

1. Hardened steel, quenched and tempered steel, annealed steel, bearing steel, strip steel, hardened steel sheet, hard alloy, etc.
