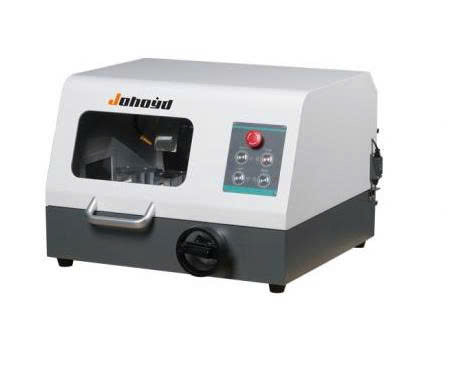

Johoyd HQG-60SY ເຄື່ອງຕັດຕົວຢ່າງເຫຼັກແຫຼມ (2800r/min, 2.2 kW)

Technical parameter：

Cutting method: Manual, Y-axis feed

Y-axis travel: 125mm

Cutting disc size: Φ250×2×Φ32mm

Maximum cutting section: 60X60mm

Cutting table size: 300X240mm

Spindle speed: 2800r/min

Motor power: 2.2kw

Machine power: 2.8kw

Cutting fixture: Threaded clamp

Lighting: Waterproof LED lighting

Water tank: Automatic circulation water tank

Input power: 380V, 50Hz, three-phase four-wire

Overall dimensions: 650x700x480mm

Weight: 100kg

Main functions and features

1. The main parts such as the shaft sleeve and the work surface are made of corrosion-resistant materials and have a long service life.

2. The workbench and the motor fixing frame are fixed and stable, and the surface is sandblasted, which is beautiful and durable

3. The workpiece is fixed with a quick clamp, which is convenient, fast, safe and reliable (optional)

4. The overall mechanism rotates smoothly, with low noise and long service life

5. The perspective adopts impact-resistant transparent PC board, which is safe and reliable

6. Waterproof LED lights are used for lighting, which is convenient for observing the entire cutting process

7. With cooling device and water tank, the coolant can be recycled, which is economical and efficient 8. The maximum cutting diameter is 60mm
