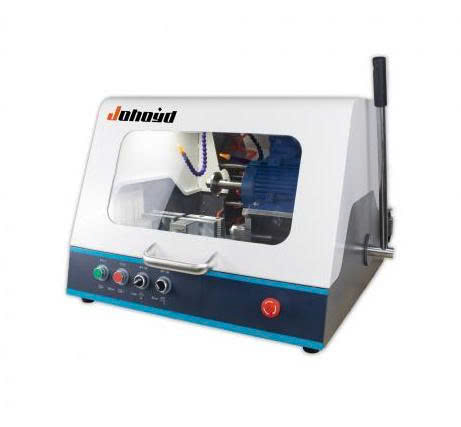

Johoyd HQG-100 ເຄື່ອງຕັດຕົວຢ່າງເຫຼັກແຫຼມ (2800r/min, 2.2 kW)

Technical parameter：

Cutting method: Manual, Y-axis feed

Cutting disc size: Φ300×2×Φ32mm

Maximum cutting section :100X100mm

Spindle speed: 2800r/min

Motor power: 2.2kw

Machine power: 2.8kw

Cutting fixture: Threaded clamp

Lighting: Waterproof LED lighting

Water tank: Automatic circulating water tank

Input power: 380V, 50Hz, three-phase four-wire

Dimensions: 750X640X550mm

Weight: 100kg

Main functions and features

1. The main parts and components such as the shaft sleeve and the work surface are made of corrosion-resistant materials with long service life.

2. The workbench and the motor fixing frame are made of aluminum alloy, and the surface is sandblasted, which is beautiful and durable.

3. The workpiece is fixed by quick fixture, which is convenient, fast, safe and reliable (optional)

4. The overall mechanism rotates smoothly, with low noise and long service life

5. The perspective adopts impact-resistant transparent PC board, which is safe and reliable

6. The waterproof LED light is used for lighting, which is convenient for observing the whole process of cutting

7. Equipped with a cooling device and a water tank, so that the cooling liquid can be recycled, saving and high-efficiency 8. The maximum cutting diameter is 80mm
