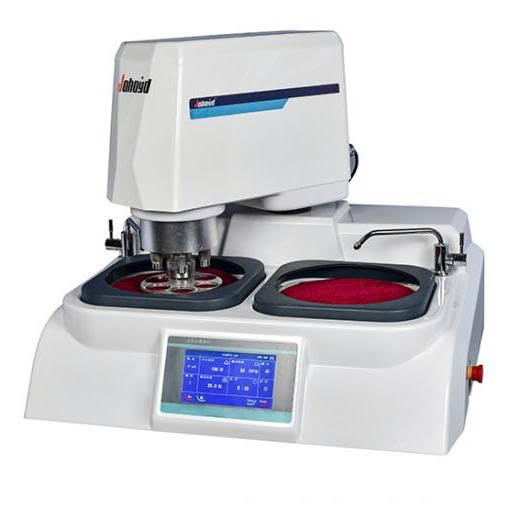

Johoyd HMP-2AB ເຄື່ອງຂັດແລະປົວມັນຕົວຢ່າງແບບອັດຕະໂນມັດເລດໂຕລອກຣາຟິກ (0—150r/min)
Technical Parameters:
Rotation direction of grinding head: Clockwise
Rotating speed of grinding head: 0—150r/min
Grinding head motor: Stepping motor 200W
Grinding head locking method: automatic
Timing adjustable time: 0-99min
Pressure adjustment method: Automatic pressure regulation inside the system
Pressure method: Single point pneumatic pressure and center pneumatic pressure
Pressurized pressure: Center: 0-150N (common range 40-120N) Single point: 0-90N
Number of specimen clamps: 6
Strength of specimen thickness: 8-22mm（can be customized）
Specimen clamping specifications: Standard Ф30, (Ф22 Ф30 Ф45 any specifications are optional, special specifications can be customized)
Power Supply: 220V 50Hz
Total power: 2.8KW
Dimensions: 755*660*710mm
Weight: 100kg
Main functions and features:
1. The base is made of aluminum alloy casting and integral molding, which is light in weight, good in shock absorption and anti-corrosion.
2. The shell is made of ABS blister, which is novel in appearance and anti-corrosion.
3. The faucet adopts all-copper chrome plating process, which has good corrosion resistance.
4. It adopts touch screen control and display, easy to operate, clear and intuitive.
5. It has the function of timing, speed, and pressure.
6. The built-in nozzle is automatically cleaned in the dirt collecting tank.
7. Support stepless speed regulation or four-speed speed regulation mode, making speed regulation more convenient.
8. The grinding head is automatically locked with electromagnetic clutch, which is convenient and quick.
9. Support single action and linkage start of grinding and polishing plate and grinding and polishing head, which is more flexible to use
10. More than 10 sets of grinding and polishing process parameters can be stored for quick recall.
11. The magnetic disc design supports quick disc change, and it is more efficient to replace sandpaper and polishing fabric.
12. The sample chuck is automatically loosened and tightened, with the internal lighting system, which is convenient for taking and placing samples.
13. Equipped with a quick sample holding plate, which can be replaced at any time with holding plates of different diameters.
14. The whole machine adopts DC brushless and stepping motor, with stable rotation, low noise and long life.
15. Double pressure method, center pressure and single point pressure, more powerful functions
16. The use of dual-disc dual-control is more flexible, making sample preparation more efficient
17. One-key automatic start function. After the sample is placed in the clamping plate, click start, the pressure head will automatically press down, the grinding head and grinding plate will automatically run, the faucet will automatically discharge water, and the faucet will automatically close after the grinding and polishing is completed.
18. The emergency stop button can stop the operation quickly and conveniently, which is safer.
