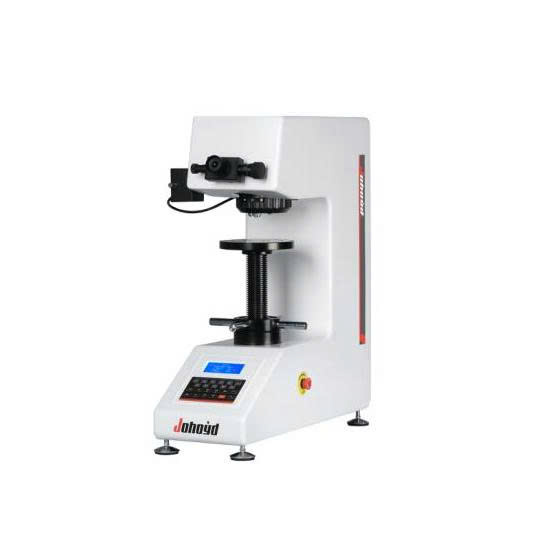

Johoyd CHV-30Z ເຄື່ອງທົດສອບຄວາມແຮງຂອງ Vickers (0.2~30kgf, HV0.2 ~HV30)

Technical Parameters：

Vickers hardness scale: HV0.2,HV0.3,HV0.5,HV1,HV2，HV2.5,HV3，HV5，HV10，HV20.HV30

Display: 4-digit hardness value, 4-digit diagonal length (D1, D2), holding time, number of tests, conversion scale, light brightness, test force

Test force (Kgf): 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5, 10, 20, 30kgf

Test mode: HV/HK

Objective lens and indenter switch: Automatic switching

Measurement magnification: Dual objective lens measurement can measure 10X and 20X

Loading control: Automatic (load/hold/unload）

Test force holding time (s): 1~98

Optical channel: Automatic (load/hold/unload

Optical system:

Objective lens: 10×, 20× (optional 40X) Eyepiece magnification: 10× (optional 15X)

Total magnification (μm): 100×, 200× Measuring range (μm): 400

Resolution (μm): 0.5

Execution standard: ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2

Hardness measurement range: (5-9999)HV

XY test table (optional)

Size (mm): 100×100 Travel range (mm): 25×25

Minimum reading (mm): 0.01

Maximum test piece height (mm): 165

Maximum test piece width (mm): 130 (Distance from the center line of the pressure head to the machine wall)

Power supply voltage: AC220V/50HZ

Dimensions (mm): 585×200×630

Weight (kg): 42

Standard Configuration

Main unit: 1 unit

Large and medium "V" test bench: 1 each

Horizontal adjustment screw: 4 pieces

Power cord: 1 stick

10X micrometer eyepiece: 1 piece

Vickers hardness block: 2 pieces

2A spare fuse: 2 pieces

Product certificate: 1 portion

Product instruction manual: 1 portion

Main functions and features of the machine:

1. The optical system designed by senior optical engineers not only has clear images, but can also be used as a simple microscope. The brightness is adjustable, the vision is comfortable, and it is not easy to get tired after long-term operation;

2. The industrial display screen can display the test method, test force, measured indentation length, hardness value, test force holding time, and number of measurements;

3. The cast aluminum shell is formed in one step, the structure is stable and does not deform, the car paint is high-grade, and the scratch resistance is strong. It is still bright as new after years of use;

4. Our company has the ability to independently develop, design, produce and process, and our machines provide lifetime parts replacement and maintenance upgrade services;

5. The CHV-30Z model can input the measured indentation length on the button to obtain the hardness value;

6. The CHV-30Z model can achieve: observation-test-measurement position switching is completed by the automatic turret;

Main uses and scope of application:

1. Steel, non-ferrous metals, metal foil, cemented carbide, metal sheet, microstructure, carburization;

2. Carburizing, nitriding and decarburizing layers, surface hardening layers, electroplating layers, coatings, heat treatment;

3. Glass, wafers, ceramic materials;
