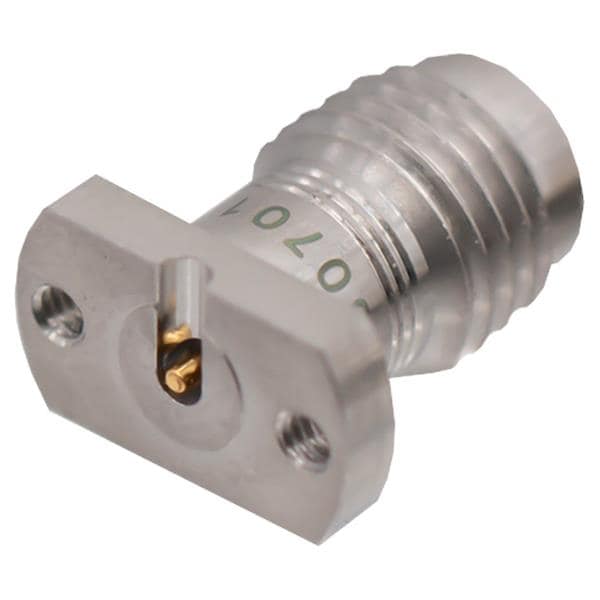

Johnson / Cinch Connectivity Solutions 147-0701-222 ຕູ້ຮັບ PCB 2.4mm ຊ່ອງຂ້າງ PCB ຕິດຕັ້ງດ້ວຍການບີບ

Gender: Jack (Socket)

Polarity: Standard

Frequency: 50 GHz

Impedance: 50 Ohms

RF Series: 2.4 mm

Body Style: Flange

Orientation: Straight

REACH - SVHC: Details

Body Material: Stainless Steel

Mating Cycles: 500 Cycle

Mounting Style: Flange Mount

Board Thickness: 1.57 mm to 2.79 mm

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 50 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
