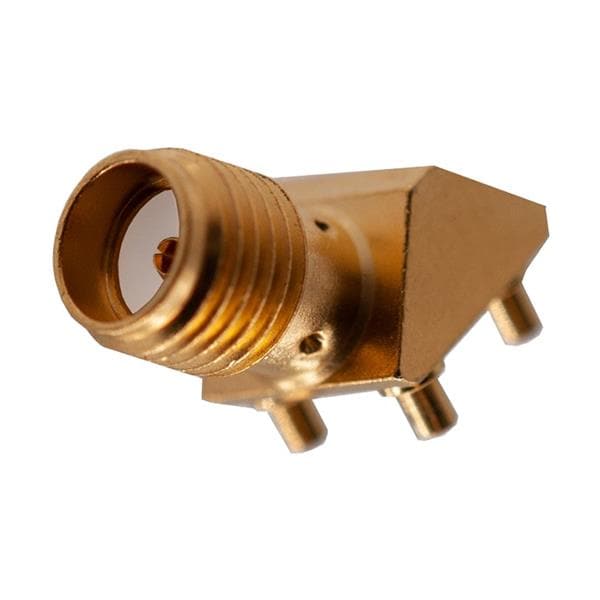

Johnson / Cinch Connectivity Solutions 142-0711-271 ຕູ້ເຊື່ອມຕໍ່ PCB SMA Jack 45 Deg ຕິດບົດ PCB

Gender: Jack (Socket)

Polarity: Standard

Frequency: 18 GHz

Impedance: 50 Ohms

RF Series: SMA

Body Style: 45 Deg Angle

Body Finish: Gold

Orientation: 45-Degree Angle

Unit Weight: 8.431 g

REACH - SVHC: Details

Body Material: Beryllium Copper

Mating Cycles: 500 Cycle

Mounting Style: PCB Mount

Voltage Rating: 170 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 18 GHz

Termination Style: Solder Pin

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
