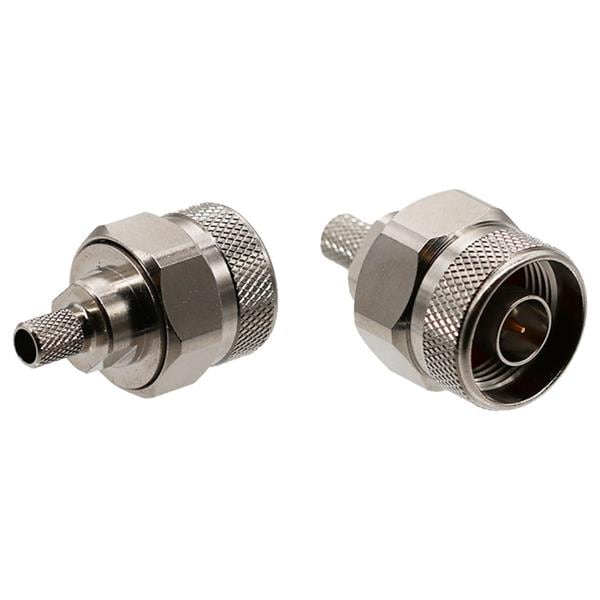

Johnson / Cinch Connectivity Solutions 138-0414-001 ຕົວເຊື່ອມສາຍສະເພາະ N Straight Crimp Plg LMR-240, 50 Ohm

Gender: Plug (Pin)

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: N Type

Body Style: Straight

Cable Type: LMR-240

Body Finish: Nickel

Orientation: Straight

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500 Cycles

Insertion Loss: 0.1 dB

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 550 Vrms

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 3 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Crimp

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C
