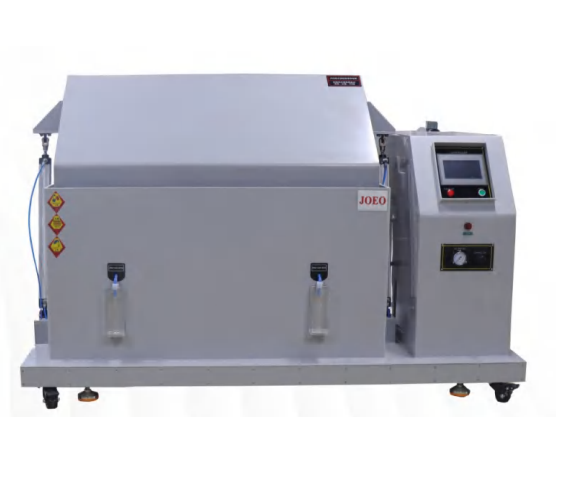

Joeo STH-90-B Salt Fog Chamber (270L; -10~ +85℃; 20~98%RH)
ຜູ້ຜະລິດ: Joeo Model: STH-90-B - ຕິດຕໍ່ພົວພັນ
Internal Dimension WxHxD (mm): 900x600x500
External Dimension WxHxD (mm): 1500x1300x1000
Capacity (L): 270
Test Standard: ACSS, SOAK , DRYAIR , HUMI, ROOMAIR
Temperature Range: -10 ~ +85℃
Humidity Range: 20% ~98% R.H （Temperature RT{+15℃} ~ 80℃） ,15%~95% R.H add dehumidifier or Dryer
Temperature Rising/Falling Speed Rate:
+ Temperature rising approx:0.1~ 3.0℃/min( 3-10℃/min whole Course Average-optional)
+ Temperature falling approx:0.3-1.0℃/min ( 3-10℃/min whole Course Average-optional)
Analytic Accuracy/Distribution Uniformity of Temp & Humidity: 0.1℃ ; 0.1% R.H / ±2.0℃ ; ±5% R.H
Control Accuracy of Temperature: ±0.5℃ ; ±2.5℃ 2%R.H
Pressure Bucket Temperature: Saline test method (NSS ACSS) 47±1℃; Corrosion Test (CASS)63±1℃
Compressed Air Pressure (KGf): 1.0-6.0
Spray Volume: 1.0-2.0ml/80cm²/h (working at least 16 hours, and take the average value)
Compressor: French "Tecumseh" Brand, Germany "Bitzer" Brand or samilar brand
Optional Accessories: Sample shelf , Cart etc
Spray Method: Continuous spray or Programmable spray
Power: AC220V: 1phase3 lines 50/60Hz; AC380V: 3 phase 5 lines 50/60Hz
