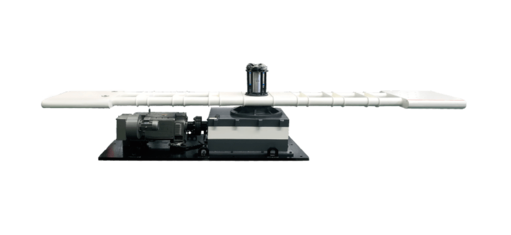

Joeo CAT31-500 ເຄື່ອງທົດສອບຄວາມເລັ່ງຄົງທີ່ (ປະເພດແຂນ) (500kg)

Max. Load (kg) / Position: 500×2

Installation Platform Size (mm): 1000×1000

Acceleration (g): 0.5～100

Acceleration   Accuracy (%): ≤±3

Specimen  Installed Radius (mm): 3000

Max   Turning  Diameter (mm): 7000

Launch/Stop Time (Min): ≤5

Continues Working Time(min): 60

Inner Diameter of Foundation (mm): Φ8500

Collector Ring: Optional according to user requirements

Weight (kg): 8000

Power Supply: AC380V±10％ 150KVA

Control System: Fully closed-loop digital network (remote) automatic control + manual control

Remarks: Collector ring and control accuracy can be configured in accordance with relevant standards or user requirements.

Working Environment: Temperature range 0～40℃, humidity ≤80%（no condense)

Standards: MIL-STD-810F       IEC68-2-7
