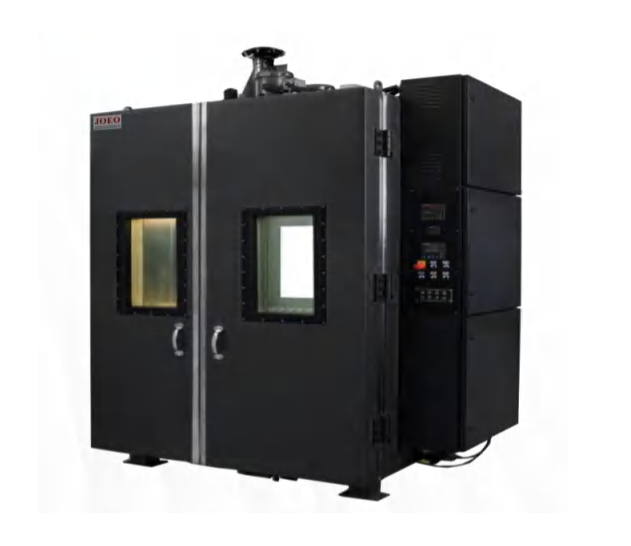

Joeo 2HLS-1100 HALT Chamber (1070x965x1070mm)
Internal Dimension (WxHxD mm): 1070x965x1070
External Dimension(WxHxD mm): 1886x2440x1370
Temperature Range: -100°C to +200°C
Heating & Cooling Rate(average): 70°C/min (Supprot customize if have special requirement)
Table Dimension(mm): 910x910
Vibration Frenquecy Range(Hz): 5-5000Hz
Vibration Acceleration (GMS): 5-60GMS
Vibration overshoot: 2GMS
Max.Load (kg): 150
Actuators(pcs): 13
Liquid Nitrogen Consumption: 25-60L/min(Liquid Nitrogen Pressure at 2.8-3.5 Bar)
Compressed Air Consumption(Air pressure): 1950L/min
Windows(pcs): 2
Door(pcs): 2
Vibration Monitoring: Two vibration channels for users with real-time monitoring of product vibration. The analysis of acceleration response spectrum
Power supply: AC380V 3phase 5lines 50/60Hz
Ectrical Service:
+ Power (KW): 83
+ Current(A): 175
Weight(kg): 1814
