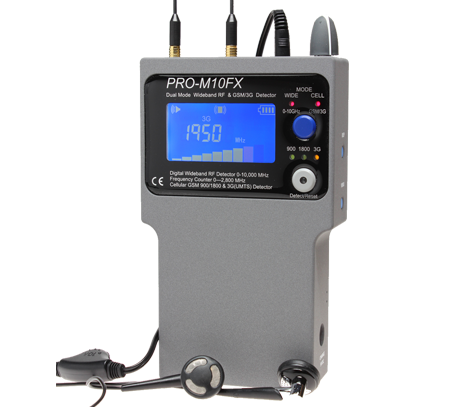

JJNdigital PRO-M10FX Dual Mode Wideband RF ແລະເຄື່ອງກວດຈັບ GSM/3G
-Typical Performance Characteristics - at 20 degrees C
-Wideband Antenna Input:
+Connector: MCX Socket - 50 Ohm
+Input Frequency Range: 1MHz – 10000MHz (10.0GHz)
+Sensitivity:
100MHz -49dBm
200MHz -47dBm
500MHz -46dBm
1GHz -41dBm
2GHz -36dBm
5GHz -18dBm
10Ghz -3dBm
+Demodulation:
Sensitivity for 50mW Audio: -30dBm (measured at 500MHz 50% AM 1kHz)
Frequency Response: 400Hz – 5kHz +/-2dB
-GSM/3G Antenna Input:
+ 2G 900MHz:
Centre Frequency: 897.50MHz
Band Width: 880 - 915MHz
Out-of-Band Attn: >40dB typ
Min. Detection Level: -35dBm typ
Peak Detect Threshold: -31dBm typ
Response Time: 100ms
+ 2G 1800MHz:
Centre Frequency: 1747.50MHz
Band Width: 1710 - 1785MHz
Out-of-Band Attn: >40dB typ
Min. Detection Level: -30dBm typ
Peak Detect Threshold: -27dBm typ
Response Time: 100ms
+ 3G(UMTS) 1950MHz [WCDMA]:
Centre Frequency: 1950.00MHz
Band Width: 1925 - 1975MHz
Out-of-Band Attn: > 70dB
Min. Detection Level: -75dBm
Peak Detect Threshold: -70dBm
Response Time: 100ms
SUPPLIED ACCESSORIES:
• Semi-Rigid Wideband Whip Antenna
• Semi-Rigid GSM/3G Whip Antenna
• Earphones
• 9V DC Charger - 110V to 240V AC input (Auto Switching) with International Adaptors
• Protective Heavy Duty Carry Case
