Screen Diameter: 312mm used range > 300mm (with the meter line)
Screen Rotary Range: 0~360 Degree
Standard Lens Magnification: 10X
Optional Lens: 20X, 50X & 100X
Accuracy: 4 + (L/25) microns
Linear Scale Resolution: 0.5 micron
Work Stage Table Top Area: 340 x 152mm
Measuring Range X-Y Axis: 150 x 50mm
Maximum Workpiece Height: 90mm
Measuring System: Built in Linear Scale
Digital Readout: DC-3000 Multi-Function Data Processing System with Geometric Function
Illumination System: 24V 150W Halogen Bulb
Power Supply: Single phase AC 110 / 220V, 50~60Hz, 400W
Dimension: W770 x D550 x H1100
Weight: Approx. 140 kg
Optional Accessories: Rotary Table, Pair of Vee Blocks, Vertical Work Piece Holder, Overlay Chart & Serial Printer
CHARACTERISTICS

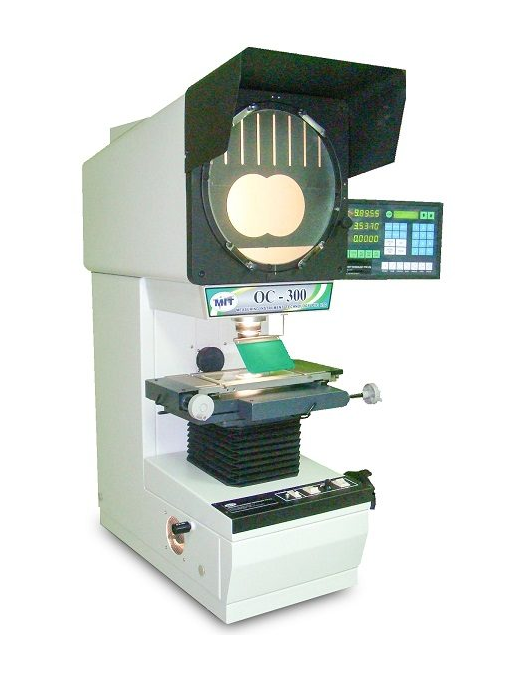

Our Series of Projector are photoelectric measuring system of High Precision and Accuracy The image on the screen is upright, comes with DC-3000 Geometrical Function DRO Foot Switch is also included to ease your measurements.
