Maximum Capacity: 200Nm
4 sub range of capacity: 200Nm, 100Nm,50Nm, 20Nm
Resolution: 0.01Nm, 0.01Nm, 0.01Nm, 0.001Nm
Accuracy: ± 1.0% of Applied Torque
Torque Cell Channel: 5 Channels (Able to input up to 5 torque cell)
Maximum Test Angle: ±36,000 Deg for Basic Model & ±7,200 Deg for High Grade Model
Resolution: 0.1 Deg for Basic Model & 0.01 Deg for High Grade Model
Angle Accuracy: ± 0.5Deg for Basic Model & ± 0.3 Deg for High Grade Model
Rotation: Rotary Table is Rotating
Rotation Speed: 1 ~7200 Deg/min
Unit: Nm / Ncm / kgf.m / kgf.cm / kgf.mm / gf.m /gf.cm / gf.mm
Display Size: CCFL Backlight LCD, W : 147 x H : 110mm
Data Storage: 100 Curves & Conditions per 1.44Mb
I/O Port: RS232C Interface, Digimatic Input, Analogue Output,Centronics Interface
Power Supply: Single Phase AC 200 ~ 240V (50/60Hz)
Power Rating: 500VA
Dimension: W600 x D480 X H1028mm
WEIGHT: Approx. 150kg

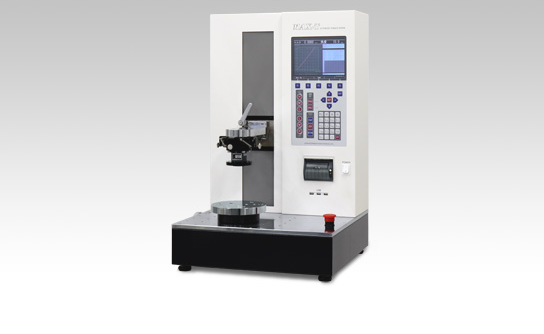

CHARACTERISTICS
A TESTER WITH A COMPUTER
Max-T Series is a tester with intelligence. It computes the angletorque Etc. parameter, thus achieving precision results.
BUILT-IN USB Drive
The MAX series is a load tester with built-in USB Drive in it. Through this facility, you can store and save your job more conveniently
DISPLAYAND PRINTING
You can see the test results and curve of torque/angle on the high density LCD on the MAX tester and also the built-in printer can print out. The CENTRONICS INTERFACE (RS232C) enables outside printer to print test results out in form of test report.
DATA MAGNIFESTATION
Through the display, can show various data’s (biggest torque, specify the angle etc.); through the upper and lower limit, test values etc., the parameters can carry out quality’s judging conveniently
THE ENVIRONMENT MEMORY FUNCTION
Testing environment and conditions can be conveniently saved in the memory of the system, thus when you test the same product, can adjust to use the parameter in the memory conveniently, avoiding the hassle to set them again.
DATASHEET
