Type: Twin column
Standard: JISC B 7721 Tensile / Compression Tester Class 1
Stroke: Standard 800mm (adjustable)
Loadcell capacity: 10N up to tester capacity
Load accuracy: ± 1% of Applied Load
Unit: mN, N, kN (For overseas kgf, gf, lb, in)
Test speed: 1 to 1000 mm / min
Length resolution: 0.01 mm (special specification 0.001 mm)
Length accuracy: Within ± (0.05 + 0.0001 L) mm (L is arbitrary length)
Dimension: W935xD405xH1380
Weight: -
Power supply: AC 200 V to 240 V
Power rating: 750 VA

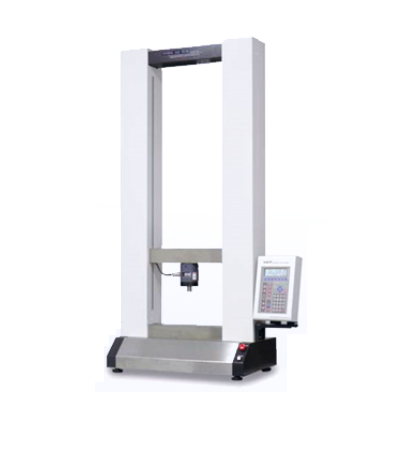

HIT series of universal load tester with multi-function is developed after many years of research and development.
As a result of interchangeable load cell technology, this product is suitable for low force material testing such as thin metal films, small probe contacts…. Also medium force testing such as peeling strength and foam material testing.
HIT series is equipped with multi-function testing parameter for different requirements. In addition, it is also cater for plastics and synthetic rubber testing especially products which require longer stroke travel.
CONFORM TO STANDARD JISC B 7721
HIT series conform to JIS B 7721 Grade 1 Tension/Compression test. With our unique mechanical design and self developed software concept is an advantage, thus able to achieve high performance with low cost
SUPPORT 4 LANGUAGES
HIT series comes with Japanese, English, Korean and Chinese which can be changed anytime by user thus making standardize and consistent measurement which support worldwide testing
CONNECT WITH PC THROUGH MXR-01
If connected to Graph Chart test with XY control Resistance Measurement MXR-01 software, it is possible to pick up various data, comparisons of data, statistics can also be exported.
VARIOUS ACCESSORIES
Can attach many kind of accessories such as extensometer, resistance meter, for switch test, connector test, rubber tensile test, urethane test.
Tester can use a pair of anvil for spring test, combine with MXR-01 to pick up data at any points.
