Maximum Load: 100N (10kgf)
Auto Switch Over of Hi / Lo Range: 100N / 10N
Load Resolution: 0.01N / 0.001N
Load Accuracy: JIS B 7738 Class 0.5 ( ± 0.5%} of Applied Load)
Maximum Free Length to test: 99.99mm
Length Resolution: 0.01mm
Length Accuracy: ± (0.05 + 0.0001 * L) mm where L is the arbitrary length
Test Speed: 1~3000mm/min
Max test length: 99.99mm
Maximum O.D of Spring for test: Ø40mm
Cycle Time of Testing: 30 Pcs / min base on 1 step load only
Power Supply: Single Phase AC 110 ~120V or AC 220~240V (50/60Hz)
Power Rating: 100VA
Dimension: W470 x D470 x H1520mm
Weight: Approx 130kg
CHARACTERISTICS

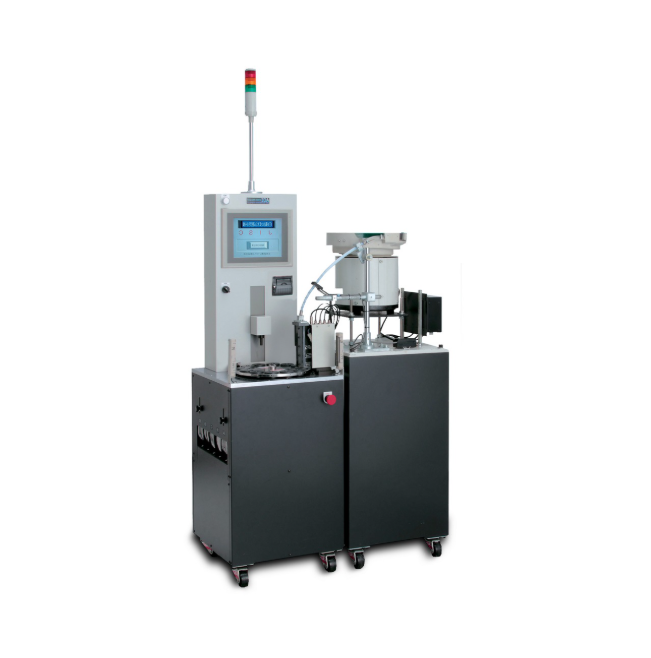

ACE series Fully Automatic Spring Tester withSorting function.
This tester conform to JIS B 7738 Grade 0.5 which is the highest grade.
It function is similar to our PRO Series of spring tester except that its touch screen with SPC control function to show Histogram & Trend Chart.
There are only 2 models for this series, ACE-100N & ACE-1kN only.
