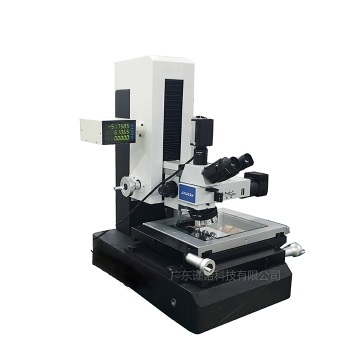

Jinuosh X4030 ຄູ່ມືເຄື່ອງມືການວັດແທກ Metallographic (400, 300, 200mm)
Measuring Range: X-axis: 400 mm; Y-axis: 300 mm; Z-axis: 200 mm
External size (mm): 800*950*920
Marble size (mm): 550*450
Glass size (mm): 430*330
Weight (kg): 500kg
X/Y axis accuracy: 2.5um+L/200
Z-axis accuracy: 1.5 um+L/50
Load bearing glass: 20kg
Power equipment: 220V（AC）50HZ
Configuration:
X4030 Coarse and Precise Focus Unit
400x300mm Precise Stsge
U-Bracket Mount LV
LV-TI 3 Trinocular Eyepiece Tube
Quadruple Nosepiece,For 5 sets of Objectives
Eyepiece CFI 10x
5W LED Point Ligte built-inTransformer for piscopic Illumination
F-P Simple Polarizign Unit (For Episcopic Illumination)
DIC Prism
Power Supply (220V)
Photo Adapter
Axle counter
DS-Vil Color Camera Head
Measuring software measures accuracy0.1um
M Plan Apo HL 5X
M Plan Apo HL 10X
M Plan Apo HL 20X
M Plan Apo HL 50X
21.5 "HD display
DS Camera I/F Cable 20-26
USB A TO B CABLE
POWER CORD
