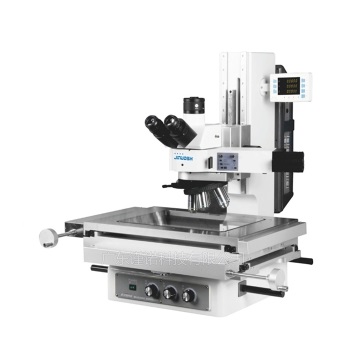

Jinuosh MU400 ເຄື່ອງມື Metallographic Microscope (200x150x200mm)
Measuring Range:
X-axis: 200 mm
Y-axis: 150 mm
Z-axis: 200 mm
X/Y measurement accuracy: 1.5um+L/150
Z axis measurement accuracy: 1.0um+L/150
Instrument Main Body: Marble base, column, work table
Transmisson System: Precision Grinding of C3 ball screw
Monitor: 21.5 " liquid crystal display
Power supply: 220V+10%(AC) 50Hz
Ambient temperature: 20 ~25°C
Relative humidity: <75%
Configuration:
MU-400 Coarse and Precise Focus Unit
200x150mm Precise Stsge
U-Bracket Mount LV
LV-TI 3 Trinocular Eyepiece Tube
Quadruple Nosepiece,For 5 sets of Objectives
Eyepiece CFI 10x
5W LED Point Ligte built-inTransformer for piscopic Illumination
F-P Simple Polarizign Unit (For Episcopic Illumination)
DIC Prism
Power Supply (220V)
Photo Adapter
Axle counter
DS-Vil Color Camera Head
Measuring software measures accuracy0.1um
M Plan Apo HL 5X
M Plan Apo HL 10X
M Plan Apo HL 20X
M Plan Apo HL 50X
21.5 "HD display
DS Camera I/F Cable 20-26
USB A TO B CABLE
POWER CORD
