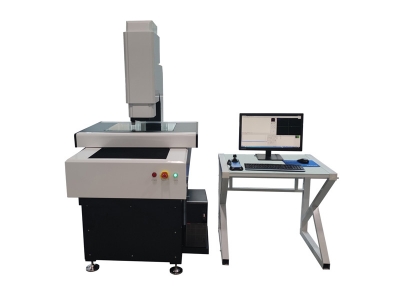

Jinuosh JX-C500 ເຄື່ອງມືວັດແທກຮູບພາບປະກອບ (500*400*200mm)
External Size: 900*1050 1650 mm
Weight: 720kg
Load-bearing glass: 20kg
Glass Size: 530*430 mm
Marble Size: 700*600 mm
Power equipment: 220V(AC) 50HZ
Campaign Range: X:500mm Y:400mm
Focusing Range: axis Z: 200mm
Optical system:
V-TECH high-resolution color CCD1/3 inch 650TVL
Automatic zoom Coaxial navigation Lens magnification: 0. 7-4.5X; distance: 90mm
Video magnification: 25-230x (19 inch widescreen display)
Display resolution: 0.0001mm
3D images accurate auto measured software
Linear Accuracy:
X,Y :3+L/250,X-Y vector Accuracy:3+L/200; Z <= 5µm (standard checking)(L means measured length, unit: mm)
Lighting system:
Controllable: LED six circles eight octants (thirty-two phase)ring surface light + coaxial epi-illumination + parallel back light in the bottom,
