Hi-pot
Output Voltage:
AC:
Range: 0.05 – 5.00kV
Accuracy: ±(2% Reading + 5 dgts)
Frequency: 50Hz/60Hz
DC:
Range: 0.05 – 6.00kV
Accuracy: ±(2% Reading + 5 dgts)
Voltage Adjustment Rate: ≤(1% - 5V) (rated power)
Electric Current Test:
AC:
Range: 0.000mA - 20.00mA
Accuracy: ±(2% Reading + 2 dgts)
DC:
Range: 0uA - 10.00mA
Accuracy: ±(2% Reading + 2 dgts)
Discharge Function: Fast automatic discharge after test
Insulation Resistance Test:
Output Voltage: 0.10kV - 1.00kV
Accuracy: ±(2% Reading + 2V)
Resistance Test Range: 1MΩ - 9999MΩ
Resistance Test Accuracy:
500V - 1000V:
1MΩ - 1000MΩ: ±(5% Reading + 2 dgts)
1000MΩ - 9999MΩ: ±(10% Reading + 2 dgts)
100V - 500V:
1MΩ - 1000MΩ: ±(10% Reading + 2 dgts)
Open Circuit Detection Function: Determining whether the object to be measured is open based on open-circuit capacitance
Discharge Function: Automatic discharge after test
ARC Detector:
Test Range:
AC: Level 1-9 (Corresponding current 20mA, 18mA, 16mA, 14mA, 12mA, 10mA, 7.7mA, 5.5mA, 2.8mA)
DC: Level 1-9 (Corresponding current 20mA, 18mA, 16mA, 14mA, 12mA, 10mA, 7.7mA, 5.5mA, 2.8mA)
Other Parameters:
Output Channel: 4 channels (4 optional points) Synchronized measurement (high voltage); 4 channels, High and low pressure: 4 channels, low pressure: 4 channels
Storage: 20 groups
Voltage Rise Time: 0.1s - 999.9s
Test Time Setting (AC/DC): 0.2s - 999.9s
Voltage Drop Time: 0.1s - 999.9s
Waiting Time (IR): 0.2s - 999.9s
Time Accuracy: ±(1% + 0.1s)
Communication Interface:
Standard: HANDLER, RS232, USB
External Dimensions: 426 (W) × 142 (H) × 470 (D) mm (Rated value)
Weight: 20kg (Rated value)
Display: LCD, 800×480 (pixel), RGB color, can display the following items: measurement value, measurement conditions, comparator limits and judgment results, list scan table, and self-check message.

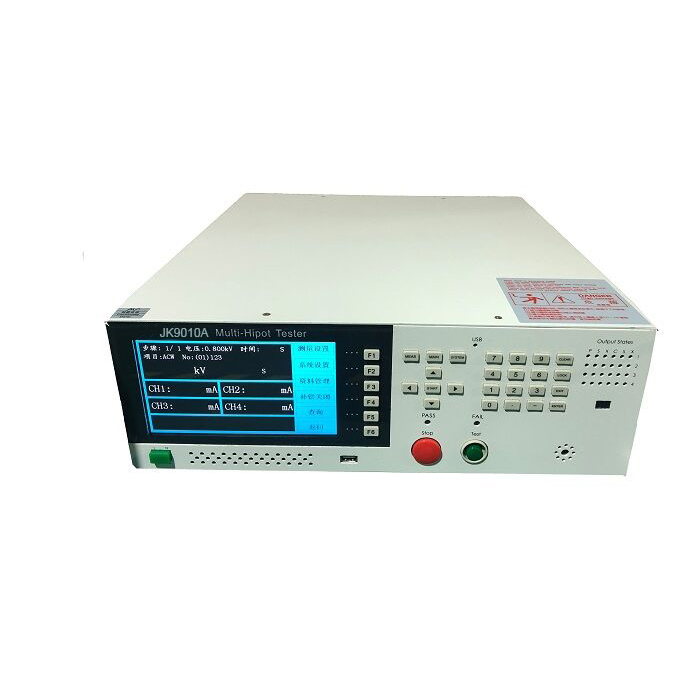

JK9010A series of voltage withstanding testers is a new type of machine developed to meet the needs of customer automation.Four products can be tested at a time, and each test result is a single signal.Good/bad product signals can be judged independently, avoiding that conventional parallel testing can not be judged independently.
Performance characteristics:
*AC/DC voltage withstanding, insulation resistance testing three-in-one model
*Programmable output voltage AC5KV， DC6KV
*Programmable current maximum AC20mA ，DC10mA
*Insulation impedance10GΩ
*Open/Short Circuit Detection Test Function（OSC）
*Human body protection function（GFI）
*Electrical flashover detection function（FLASHOVER）
*Multiple output modes can be combined
*Can output good/bad product signals to products (up to four groups)
*Storage of 50 sets of data
*Handler signal output, suitable for PLC software editing
*Standard RS-232 interface
*USB storage
