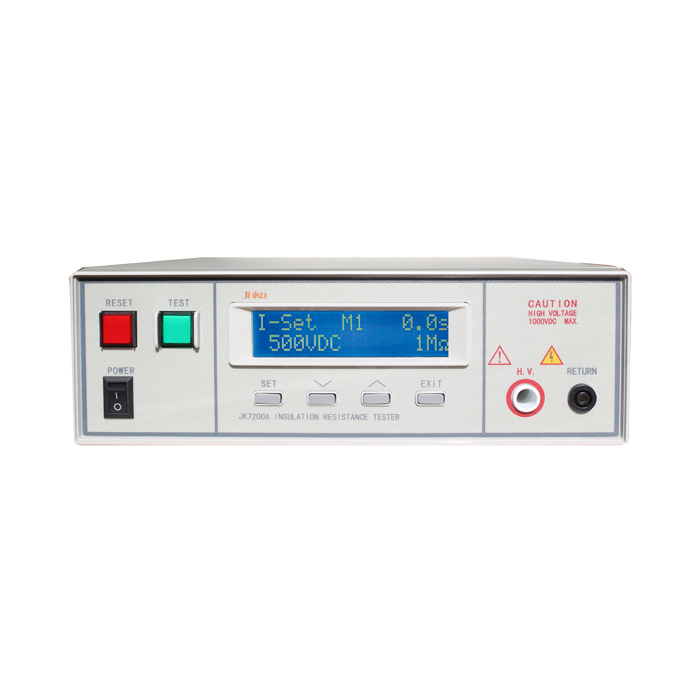

JINKO JK7200A Insulation Resistance Tester (1kΩ~1000GΩ)

Basic Accuracy: 1%

Output Voltage: Numerical Control: 10V～1000VDC

Measurement Range: Resistance: 1kΩ~1000GΩ (2%+2 dgts)

Reading: 9999

Range: Automatic

Charging Current: 200ma (MAX)

Measurement Speed: 8 meas/Sec

Display Result: Direct Reading, Resistance, Peak, And The Result Of The Separation

Correction: Open Circuit Remove One Zero

Charging Timer: 999.9s

Comparator: 5 Sets Of Records, GD/NG

Fail-On: GD, NG

Interface: RS-232 Handler

Power Requirement:

Voltage: 198VAC～240VAC

Frequency: 50Hz

Power: Maximum 50VA

Dimensions And Weight:

External Dimension (mm): 310(W) X 110(H) X 390(D)

Inside Dimension (mm): 280(W) X 88(H) X 370(D)

Weight: 5kg

Accessory: Test Clips, Test Fixture

Manual

Product Description:

JK7200A is the insulation resistance meter which is using high performance microprocessor control . CNC test voltage: 10 v ~ 1000 v, 7 range test, the insulation resistance of the largest 1000 g Ω biggest display digits number 9999。High-speed test provides the best solutions for automated production assembly. Instrument has a sorting function, sorting ring set, also can be equipped with Handler interface，It is applied to the automatic sorting system to accomplish automatic assembly line testing. By the built-in RS232C interface, it can be used for remote control and data acquisition and analysis.
