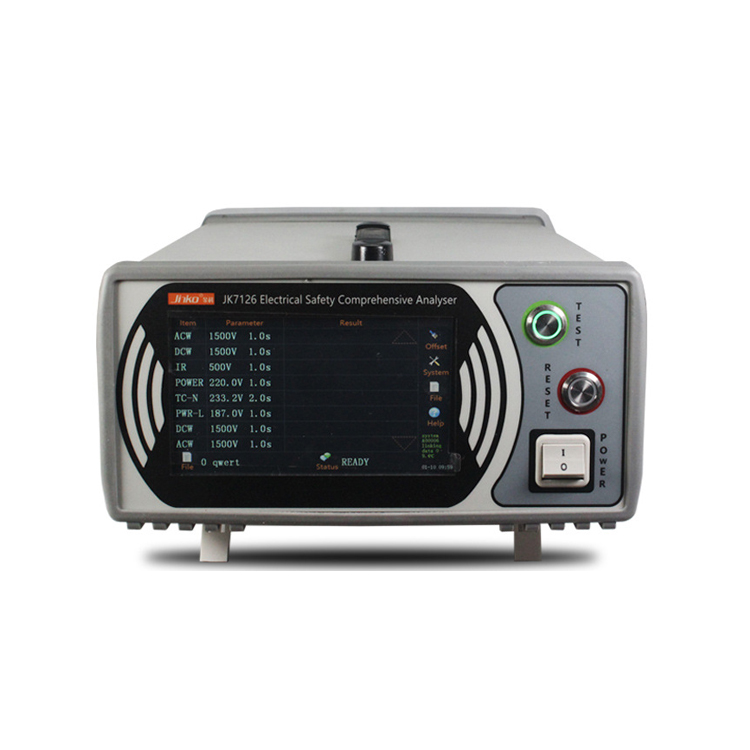

JINKO JK7126 ເຄື່ອງກວດວິເຄາະຄວາມປອດໄພທາງໄຟຟ້າແບບຄົບວົງຈອນ Hipot (30.0～300.0V, 16.000A)
AC Withstand Voltage Test:
Output Voltage: 300~5000VAC
Resolution: 1V
Accuracy: ±(1% rdg. + 5V)
Output Frequency: 50/60Hz
Breakdown Current: 0~100.00mA, short time 200mA peak value
Resolution: 0.001mA/0.01mA
Accuracy: ±(1% + 0.002mA)
Ramp Up Time: 0~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Slow Down Time: 0~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Testing Time: 0.5~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Current Compensation: 0~99.999 mA
Resolution: 0.001mA/0.01mA
Arc Detection: 0~100.00mA
Resolution: 0.01mA
Accuracy: ±5%
DC Withstand Voltage Test:
Output Voltage: 300~6000VDC
Resolution: 1V
Accuracy: ±(1% rdg. + 5V)
Breakdown Current: 0~9.999mA
Resolution: 0.001mA
Accuracy: ±(1% + 0.002mA)
Ramp Up Time: 0~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Slow Down Time: 0~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Testing Time: 0.5~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Insulation Resistance Test:
Output Voltage: 300~3000V
Resolution: 1V
Accuracy: ±(1% rdg. + 5V)
Insulation Resistance:
Range: 0.5M~999GΩ
Resolution: 0.01M/0.1M/1M/10M/100M/1G
0.60M~9.99M: ±(1% rdg. + 0.03M)
10.0MΩ~99.9MΩ: ±(3% rdg. + 0.3M)
100MΩ~9999MΩ: ±(5% rdg. + 3M)
10.0GΩ~100GΩ: ±(15% rdg. + 0.8G)
Ramp Up Time: 0~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Slow Down Time: 0~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Testing Time: 0.5~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Delay Time: 0~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Ground Resistance Test:
Output Current: 1.0~32.0A (Optional 42A)
Resolution: 0.1A
Accuracy: ±(1% rdg. + 0.2A)
Output Frequency: 50/60Hz
Ground Resistance: 10~600.0mΩ (Voltage not exceeding 12V)
Resolution: 0.1mΩ
Accuracy: ±(1% rdg. + 2.0mΩ)
Resistance Compensation: 0~600.0mΩ
Resolution: 0.1mΩ
Accuracy: ±(1% rdg. + 2.0mΩ)
Testing Time: 0.5~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Leakage Current Test:
Output Voltage: 30.0~300.0V
Resolution: 0.1V
Accuracy: ±(0.2% rdg. + 0.5V)
Output Current: 16.000A
Resolution: 0.001A
Accuracy: ±(0.2% + 0.01A)
Leakage Current: 0.0050~12.000mA
Resolution: 0.0001/0.001mA
Accuracy: ±(1% + 3μA)
Testing Time: 1.0~999.9s
Resolution: 0.1s
Accuracy: ±(1% + 0.1s)
Human Network: 6 kinds
Current Compensation: 0.0050~12.000mA
Resolution: 0.0001/0.001mA
Accuracy: ±(1% + 3μA)
Power Test:
Voltage: 30.0~300.0V
Resolution: 0.1V
Accuracy: ±(0.2% rdg. + 0.5V)
Current: 16.000A
Resolution: 0.001A
Accuracy: ±(0.2% + 0.01A)
