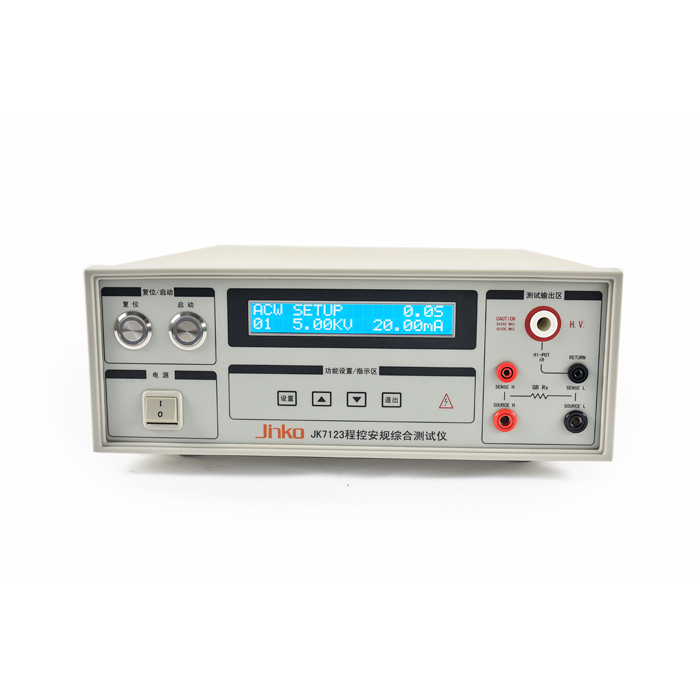

JINKO JK7123 ເຄື່ອງມືທົດສອບທີ່ສົມບູນແບບຂອງລະບົບຄວາມປອດໄພຂອງໂປຣແກຣມ Hipot tester (47-63Hz, 220VAC)

Input Characteristics:

Voltage: 220VAC, ±10%, single phase, Optional

Frequency: 47-63Hz

Fuse: 4A/250VAC

AC Withstand Voltage Test:

Rated Output: 5KV AC

Output Frequency: 50 or 60Hz, optional

Output Waveform: Sine wave, 1.3 < Crest Factor < 1.5

Leakage Current - High Limit:

Range: 0.01-20.00mA

Resolution: 0.01mA

Accuracy: ±(2% set value + 2 characters)

Leakage Current - Low Limit:

Range: 0.00-20.00mA

Resolution: 0.01mA

Accuracy: ±(2% set value + 2 characters)

DC Withstand Voltage Test:

Rated Output: 6KV DC

Leakage Current - High Limit Setting:

Range: 0.01-10.00mA

Resolution: 0.01mA

Accuracy: ±(2% set value + 2 characters)

Leakage Current - Low Limit Setting:

Range: 0.00-10.00mA

Resolution: 0.01mA

Accuracy: ±(2% set value + 2 characters)

Voltage Setting:

Range: 0-5000V AC, 0-6000V DC

Resolution: 1V

Accuracy: ±(2% set value + 5V)

Voltage Stability: ±(1% set value + 5V)

Ramp Time:

Range: 0.1-999.9S

Resolution: 0.1S

Accuracy: ±(0.1% set value + 0.05S)

Test Time:

Range: 0.5-999.9S, 0 is continuous test

Resolution: 0.1S

Accuracy: ±(0.1% set value + 0.05S)

Voltage Display:

Range: 0-5.00KV AC, 0-6.00KV DC

Resolution: 0.01KV

Accuracy: ±(3% set value + 3 characters)

Current Display:

Range: 0.01-20.00mA AC, 0.01-10.00mA DC

Resolution: 0.01mA

Accuracy: ±(2% set value + 3 characters)

Insulation Resistance Test:

Rated Output: 1000V DC

Voltage Setting Range:

Range: 500-1000V DC

Resolution: 1V

Accuracy: ±(2% set value + 5V)

Voltage Display:

Range: 0.50KV – 1.00KV DC

Resolution: 0.01KV

Accuracy: ±(2% set value)

Resistance Display:

Range: 1.000-2000MΩ

Accuracy: ±(5% set value + 3 characters) (1-1000MΩ), ±(10% set value + 3 characters) (1000-2000MΩ)

Resistance High Limit Setting: 0-2000MΩ, 0 is not judged

Resistance Low Limit Setting: 1.0-999.9MΩ

Judge Delay Time:

Range: 0.8-999.9S, 0 is continuous judgment

Resolution: 0.1S

Accuracy: ±(0.1% set value + 0.05S)

Ground Resistance Test:

Voltage Output: <7VAC

Peak Current Display: 3.0-30.0A, ±(3% display value + 3 characters)

Ground Resistance:

Upper Limit Setting:

1-300mΩ (3-10A)

1-120mΩ (11-30A)

Resistance Display: 0-300mΩ

Test Time: 0.5-999.9S, 0 is continuous

Datasheet

Manual

Product Description:AC/DC withstand voltage/ Insulation/ Grounding resistance tester

l Suitable for photovoltaic products, household appliances, medical equipment, audio-visual equipment, IT equipment, television equipment, transformers and motor transformers

l Voltage and insulation ground automatic conversion test mode

l The voltage is increased by the time gradient

l Set current and resistance limit

l With arc detection function (1-9 level)

l 3 groups of test memory patterns

l Optional RS232C interface and PLC interface
