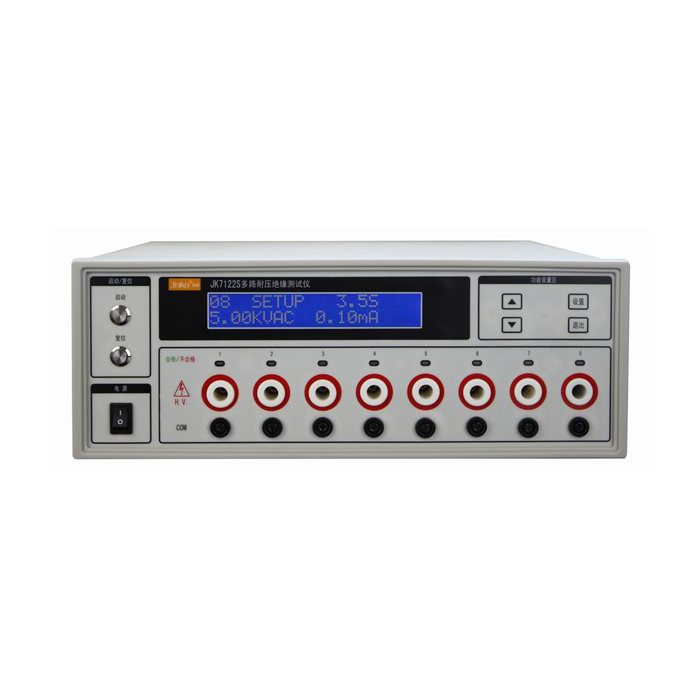

JINKO JK7122S-8 ເຄື່ອງທົດສອບແຮງດັນສນວນການສະແກນຫຼາຍຊ່ອງ (0～6kV, 8 channel)

Output Voltage: 0～6kV(DC)±(2%+5V)

AC Current:

Upper Limit: 0.00 – 20.00mA ±(2% + 2 dgts)

Lower Limit: 0.00 – 20.00mA ±(2% + 2 dgts)

DC Current:

Upper Limit: 0.01 – 10.00mA ±(2% + 2 dgts)

Lower Limit: 0.01 – 10.00mA ±(2% + 2 dgts)

Insulation Resistance Test Voltage:

Range: 100 – 1000kV

Accuracy: ± (2% + 5V)

Insulation Resistance:

Range: 1-1000 MΩ

Accuracy: ± (2%±2dgts) Voltage ≥ 500V DC

± (5%±2dgts) Voltage＜500V DC

Range:(1000-9999)MΩ

Accuracy:± (5%±2dgts) Voltage ≥500V DC

±（10%±2dgts) Voltage＜500V DC

LCD Monitor Display: back lit LCD

Testing Time:

Range: 0.1 – 999.9s

Accuracy: ±(2% + 0.05 sec)

Sampling Interval: 500ms

Remote Control:

Input: Test, Reset

Output: Pass, Fail, Test-in-Process

Test Alarm: Buzzer, Indicator Light

Correction Method: Software Calibration

Memory Device: It can memorize the setting values of voltage, current, resistance, time, etc.resistance, time, etc.

Temperature / Humidity:

Range: 0℃ – 40℃

Humidity: ≤75% RH

Size and Weight:

Dimensions: W × H × D: 280mm × 100mm × 370mm

Weight: 10kg

Standard Accessories: JK26002A

Manual

JK7122S is a multi-channel scanning withstand insulation tester which can respectively output AC/DC withstand insulation test voltage of 4,8 and 16 channels, It can be made time-sharing scanning test to multiple channels and can also be made the test to multiple channels at the same time.It is capable of testing the withstand insulation performance of electronic components, household appliances, transformers, lighting appliances, electric tools, electric heating appliance ,etc quickly and accurately , improving the test efficiency.

Features

■ The output voltage will be raised,hold,dropped according to the time gradient.

■ I t offers 3 parameters test of AC withstand voltage,DC withstand voltage and insulation resistance.

■ It can be made the continuous test for single channel, time-sharing scanning test for multiple channels and simultaneous test for multiple channels.

■ 15 groups of test memory pattern

■ With the function of arcing detection

■ With human-machine interface

■ Easily connection,convenient for use.
