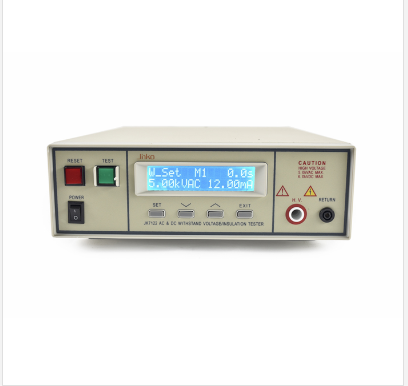

JINKO JK7122 ເຄື່ອງທົດສອບຄວາມຕ້ານທານແຮງດັນຂອງ AC&DC ທົນຕໍ່ແຮງດັນ

output voltage: 0～5kV(AC)

0～6kV(DC)±（2%+5V)

Upper limit of AC current: 0.10～12.00mA ±（2%+2 dgts)

Lower limit of AC current: 0.00～12.00mA> ±（2%+2 dgts)

Upper limit of DC current: 0.10～5.00mA ±（2%+2 dgts)

insulation resistance: Only 7112 and 7122 have this function

range:（1-1000）MΩ

accuracy: ±（2%±2 dgts) Voltage≥500V DC

±（5%±2 dgts) Voltage≥500V DC

range:（1000-9999）MΩ

accuracy: ±（5%±2 dgts) Voltage≥500V DC

±（10%±2 dgts) Voltage≥500V DC

Liquid crystal display: 16 x 2 row backlight liquid crystal display

Test time: 0.1～999.9s5V ±（2%+0.05sec)

Remote control device: Input:Test, Reset Output: Pass, Fail, Test-in-Proess

Test alarm: Buzzer, Indicator light

Size /weight W×H×D:280mm×100mm×370mm / 10kg

Standard accessories: 26002A
