Test Range:
Voltage measurement range: 0-60V, Resolution: 1mV, Accuracy: ±0.5mV
Internal resistance measurement range: 0-1999mΩ, Resolution: 1mΩ
Capacity measurement range: 0-1000AH, Minimum resolution: 1mAH
Test Accuracy:
Voltage measurement accuracy:
±(Result * 0.1% + 3mV) (Voltage 0-36V)
±(Result * 0.1% + 30mV) (Voltage 37-60V)
Current measurement accuracy:
±(Result * 0.2% + 30mA) (Current 0-10A)
±(Result * 0.5% + 30mA) (Current 11-30A)
Internal resistance measurement accuracy:
±(Result * 1% + 1mΩ)
Battery capacity measurement accuracy: 100AH: ±2%
Test speed:
Static test (test all functions): 3 ~ 5s
Capacity test (1C current charge and discharge): 3 ~ 4h
Internal CNC:
Maximum output voltage: 30V
Voltage source index:
Maximum output current: 10A
Maximum output power: 100W
Ripple voltage: ﹤20mV
Load adjustment rate: ﹤10%
Response time (the time from 0 to the highest output voltage): 2S
Internal numerical control electronic load index:
Maximum discharge voltage: 60V
Discharge current: 50A (continuous)
Load power: 50W
First level over discharge current: 50A (20s)
Limit load power: 1000W
Limit power: 500W (continuous)
Power supply voltage: 220V ± 10% 50Hz
U disk upgrade: Yes
Communication Interface: Yes (with host computer software)
Accessory: Kelvin test line, test probe
Size/Weight:
Dimension (mm): 330 (W) x 185 (H) x 460 (D)
Weight: About 20kg
Manual

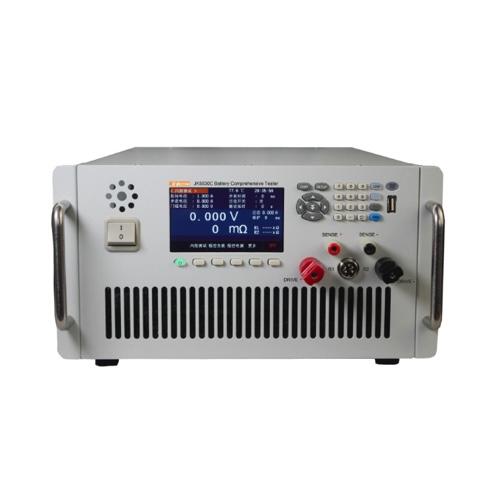

Product introduction:
In response to the production and testing needs of these rechargeable batteries, the company has developed a special comprehensive rechargeable battery tester. This tester can make a quantitative and accurate measurement of some basic parameters of the battery, and can measure the open circuit voltage of the battery. Resistance, charge, discharge performance, battery capacity, especially for lithium battery functions, such as overcharge protection, overdischarge protection, overcurrent protection, short circuit protection and other functions, and the corresponding values have been measured, which greatly facilitates battery production Work with pre-sales and after-sales services, you can intuitively judge the performance and quality of the battery in a few simple steps, and also have a quick screening function, you can set the upper and lower limits of the measurement parameters, you can easily from a batch Defective batteries are quickly detected in the finished battery to improve production efficiency. In addition, some special functions are added to make it have some characteristics of general instruments and equipment, which expands the flexibility of the equipment and has the characteristics of a wide range of applications.
