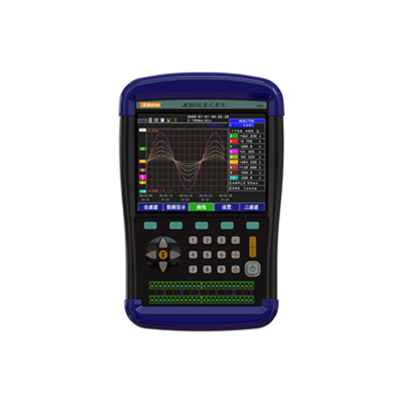

JINKO JK350 ເຄື່ອງບັນທຶກຂໍ້ມູນຫຼາຍຊ່ອງດ້ວຍມືຖືທີ່ມີຄວາມຊັດເຈນສູງ (10ch)

Number of analog input channels: 10ch

External input: Input (*5)

Input (*2): Pulse input: 2ch

Input (*1): High level test low level stop

Input (*2): Alarm output: 1ch, Voltage output 5V 1ch (12V, 24V Remarks before leaving the factory)

Sampling period: 50ms ~ 1h (Single channel highest 5ms)

Time scale of waveform display: 1s ~ 24h/scale

Trigger function, alarm judgment:

Trigger action: High level test low level stop

Repetition of action: OFF ON (Automatic preparation)

Condition trigger: High level

Alarm output: Output signal at alarm value

Pulse input: Cumulative mode, Cumulative number of pulses after starting measurement: 50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Number of pulses/full scale)

Calculation function:

In-channel calculation: Addition, subtraction, multiplication, and division of analog signals

Statistical calculation: Average, peak, maximum, minimum, actual value

PCI/F: USB2.0 (full speed), wireless LAN (use condition)

Storage device:

Built-in: 32GB Flash memory

External: U disk (direct storage, transfer)

Save content: Measurement conversion data (CSV, TXT)

Collection mode: Circular recording function: Save the latest data (number of recorded data: 1000 ~ 2000000)

Data playback: JK350 collected data (BIN format)

Unit conversion function: The measured value can be converted between specified units

Monitor:

Size: 5.6 inch TFT color LCD (WQVGA: resolution 640x480)

Language: EN, CN

Screen display (*9): Numerical value and YT waveform, only waveform, numerical value, and statistical calculation

Use environment: 0 ~ 45℃, 5 ~ 85% RH (No condensation), 0 ~ 40℃ during battery drive / 15 ~ 35℃ during charging

Rated power:

AC adaptor: AC100V ~ 240V/50 ~ 60Hz (1 standard power adapter)

DC Power drive: DC8.5V ~ 24V, Another DC drive line is required

Battery: Dry battery driver (battery option C-800): 8.4V DC, 25000mAh

Power consumption (*10): 36VA or less

Dimension [H X W X D]: Size: 229 (H) * 148 (W) * 46 (D) (mm) (not including projection)

Weight: (about) 1280g

Product Description:

● Insulation between channels

● Multi-channel data recorder with universal signal input that can be used independently

● Support all types applied flexible signal input system

● Support remote monitoring and wireless LAN function for data logging

● 32G SD card storage capacity

● Support 5ms interval sampling at maximum

● Thermocouple measurement accuracy increased by 50%

● Resolution sample signal up to 1µV

● 5.6 inches (640x480 dots) TFT LCD display with a wider viewing angle
