Measuring Parameters: L-Q, C-D, R-Q, Z-Q
Basic Accuracy: 0.2%
Measuring Frequency: 100Hz, 120Hz, 1kHz, 10kHz
Display Range:
Z, R: 0.0001 Ω - 99.999MΩ
C: 0.01 pF - 99999mF
L: 0.01 μH - 99999H
Q: 0.0001 - 99999
D: 0.0001 - 99999
Output Impedance: 30Ω, 100Ω
Range: Automatic, Hold
Max Reading:
Primary parameter: 99999 (5 digits)
Secondary parameter: 99999
Monitor parameter: 99999
Signal Level: 0.1V, 0.3V, 1V
Measuring Speed: Slow: 2 times/second, Medium: 5 times/second, Fast: 10 times/second
Trigger Mode: Internal, Manual, External
Clear Function: Open/Short Circuit, Clear Zeroing
Equivalent Circuit: Series and Parallel
Display: 192 x 64 dot-matrix LCD
Power Supply: AC 110V or 220V
Dimension & Weight: 350mm (W) x 110mm (H) x 320mm (D), 5.5kg
Datasheet
Manual

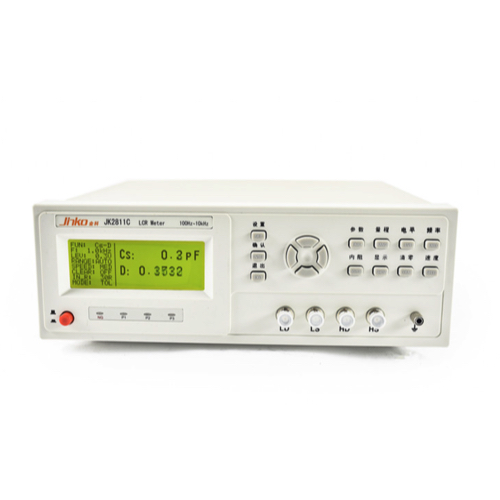

JK2811C Bench LCR Meter Tester 10KHz Inductance Capacitance Resistance RZDQLC Tester with 0.2% Accuracy, AC110V-220V.
Features:
■ 192 x 64 dot matrix LCD display.
■ Higher measurement speed (80ms/time).
■ 30Ω/100Ω selectable signal source output impedance.
■ Measuring frequencies: 100Hz, 120Hz, 1kHz, 10kHz.
■ User-friendly interface and easy operation.
