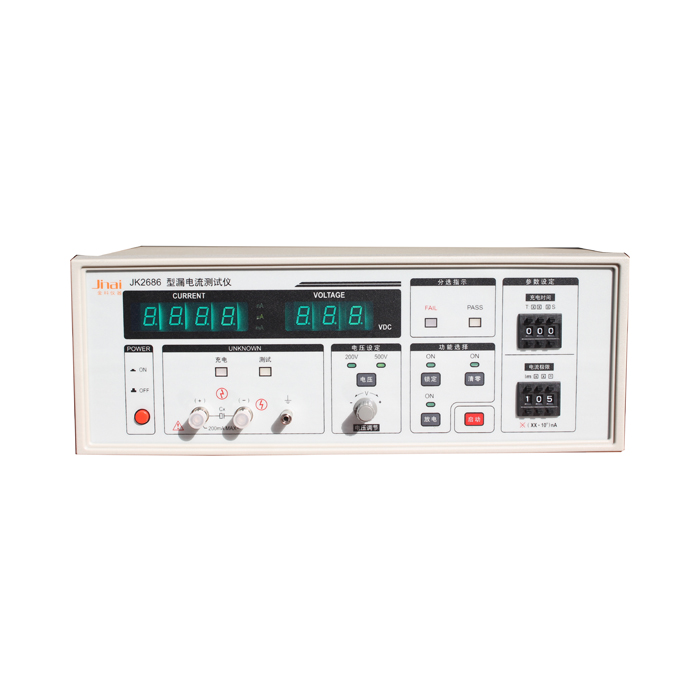

JINKO JK2686 ເຄື່ອງທົດສອບກະແສໄຟຟ້າຮົ່ວໄຫຼ capacitor (10 nA — 19.99 mA)

Test Voltage: 0 — 200 V, 0 — 500 V

Voltage Accuracy: ±1% Set value ±1 dgt

Range: 10 nA — 19.99 mA, Resolving power: 1 nA

Current Accuracy: ±2% reading ±2 dgt

Control Mode: Microprocessor

Display Mode: Digital display, Voltage: 3, Current: 3 1/2

Maximum Charge Current: 200 (1±20%) mA

Charging Time: 0 — 99.9 s, Accuracy: 2%T set ±0.5s

Limit Setting: 0 — 99×10⁹ (nA)

Sorting: Pass, Fail, Fail message

General Technical Index:

Working Temperature, Humidity: 0℃ — 40℃, ≤90% RH

Power Requirements: 198 V — 242 V AC, 47.5 Hz — 52.5 Hz

Power Waste: ≤50 VA

Size (W×H×D): 350 mm × 135 mm × 357 mm

JK2686 electrolytic capacitor leakage current tester is a kind of measuring instrument which is based on the micro processing technology. The test voltage can be adjusted continuously, the voltage three digit display, the current three - and a half digital display, charging - test automatic conversion, Maximum test voltage 500V maximum test current 20mA, maximum charging current 200mA, maximum charging time of 99.9 seconds. The instrument has the characteristics of current limit indication, fast test speed, easy operation, safety and reliability. Applicable to all kinds of electrolytic capacitor production line quality certificate, incoming inspection requirements.
