Test Parameter: 10 Channel DC Resistance, 20 Channel DC Resistance
Basic Accuracy: Resistance: 0.5%, Voltage: 0.05%
Test Range: 0.01mΩ – 200KΩ
Signal Source: AC 1kHz, Test Current: <150mA
Range: Three-Range Automatic and Manual
Test Speed: Fast: 20 times/s, Middle: 10 times/s, Slow: 5 times/s
Display: Direct Reading, ΔABS, Δ%, Sorting Result
Max. Reading: Resistance: 200.00
Correction: Short Circuit Clear in Full Range
Comparators: RHI/RNG/RLO Output, VHI/VNG/VLO Output, Absolute Value Tolerance ±TOL, Sorting Percent Tolerance %TOL, Sorting Order Comparison
Trigger: Internal Trigger, Manual Trigger, External Trigger, Remote Trigger
Interface: USB HOST, USB DEVICE, RS232, HANDLER, RS485
Power Supply: Voltage: 195VAC – 245VAC, Frequency: 50Hz, Power: Max. 15VA
Size and Weight: Dimensions: 264mm (W) × 107mm (H) × 350mm (D), Weight: 4kg
Accessories: Kelvin Test Line, RS232 Interface Cable
Optional Accessories: Test Probe, Test Meter Stick
Others: Test Line Damage Detection, True Color 4.3-Inch TFT-LCD Display, Keyboard Lock and Data Retention Function, U Disk Data Recording
Brief Introduction:

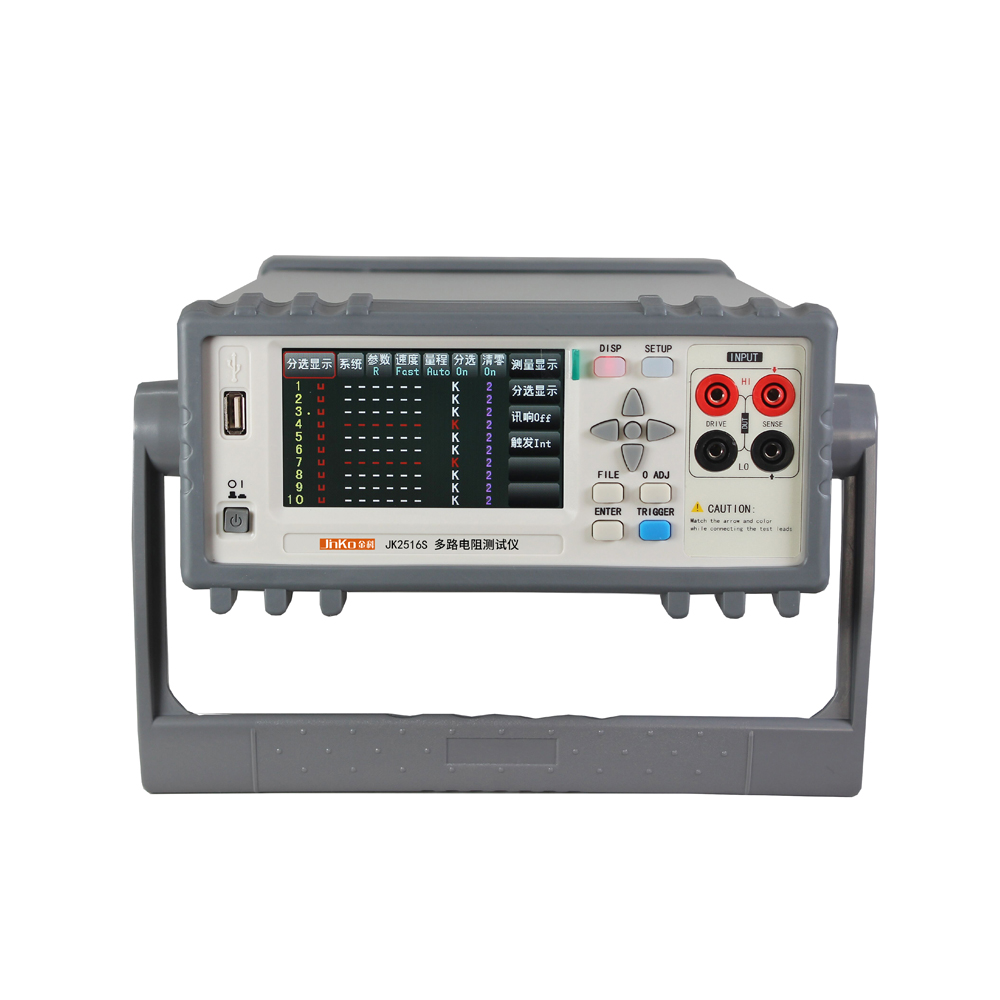

JK2516S series multi-channel resistance tester is a high-precision wide-range automatic DC resistance tester specially designed for multiple resistance testing. The instrument can measure 20 resistances at the same time and display them on the screen at the same time. The instrument has high anti-interference; each channel has an accuracy of 0.05% and a range of 10uΩ~200KΩ; the display digits are four and a half digits; the test speed can reach up to 20 times per second; the temperature compensation of the instrument avoid the influence of ambient temperature on the test work; the instrument has a very convenient sorting function, the Handler interface can output the sorting results of all channels without expansion, and can be equipped with RS232/USB/RS485 interfaces for remote control and data acquisition and analyze. The instrument is small, compact but fully functional. Through the four-terminal test method, high-speed, high-precision measurement of various high, medium and low value resistors; various switch contact resistance; relay wire package and contact resistance; transformer, inductor, motor, deflection coil winding resistance; Coil resistance, shunt resistance, series film resistance, wire resistance; metal riveting resistance of cars, ships, airplanes; DC resistance of fuses, resistors, conductive rubber, printed board lines and hole resistance. The instrument is widely used in most places such as research and development, production lines, and incoming inspection.
Scope of application:
1. Multi-winding transformer DC resistance measurement
2. Coil DC resistance measurement
3. Motor multi-winding resistance measurement
4. Various multi-channel resistance measurement, especially suitable for multi-channel resistance measurement with great difference in resistance value of different channels.
Product Description:
Test range: 100μΩ-200KΩ, minimum resolution: 10μΩ, up to 20 resistances can be tested, independent upper and lower limit sorting output
