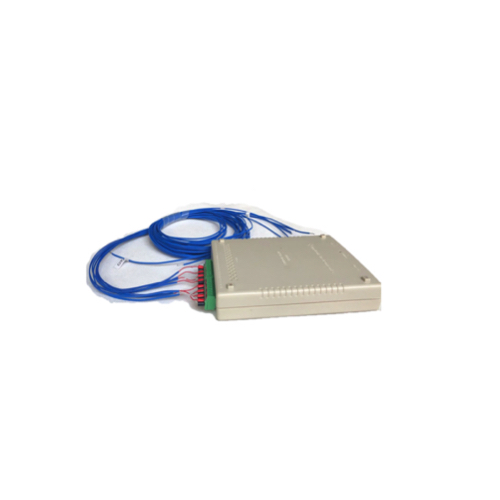

JINKO JK200 ບັດເກັບຂໍ້ມູນ (16 bit, 8 channels)

Effective resolution: 16 bits

Channel: 8 differential

Channel: Independent configuration 8

Input signal: Thermocouple K, E, B, N, T, E, S, J, WRE5-26, WRE3-25; Thermal resistance: Pt100, Cu50; Current 4-20mA, 0-10mA, voltage 0-5V, 0-10V

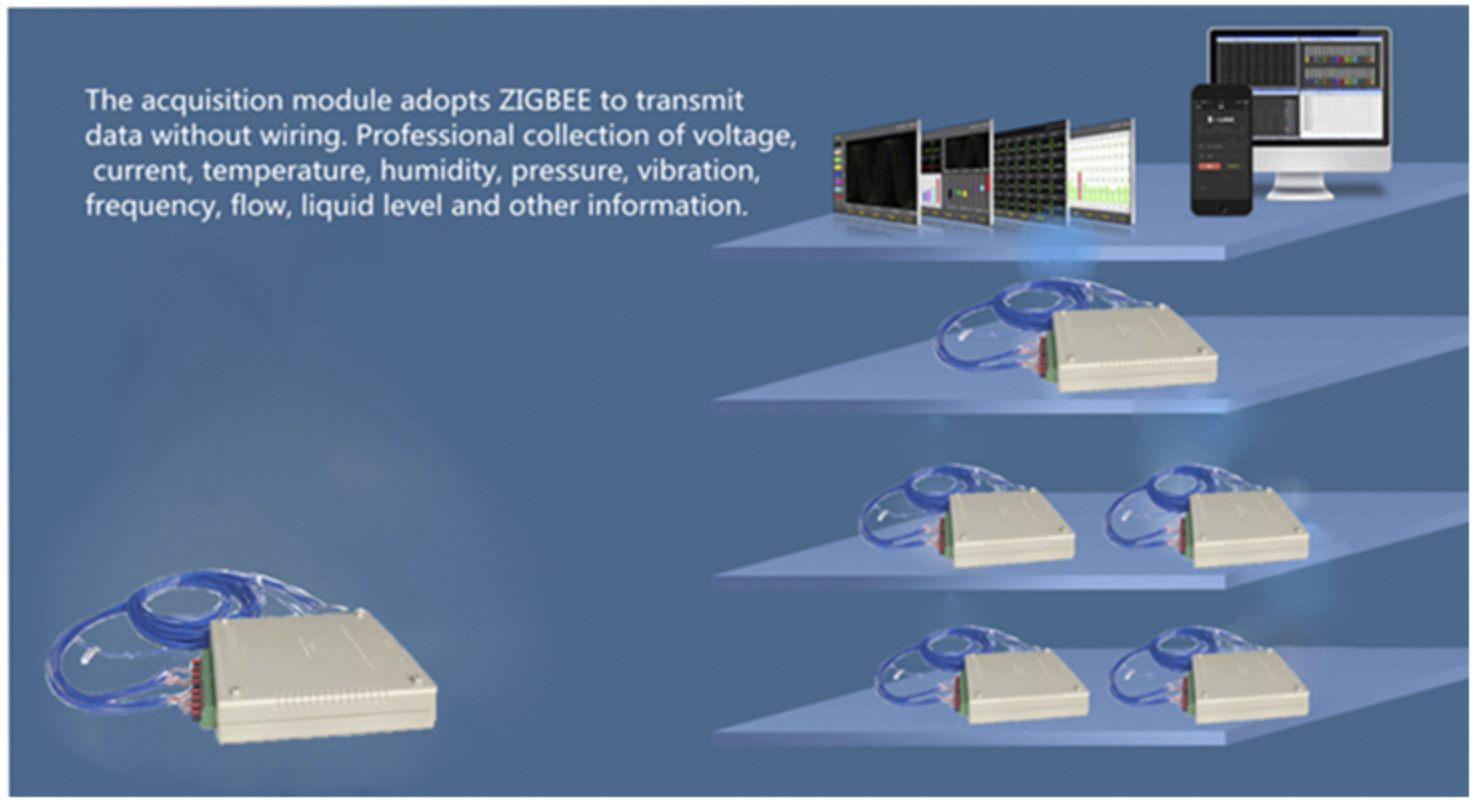

Communication method: ZigBee wireless

Communication distance: 500m (unobstructed)

Communication frequency band: 2.5GHz

Network topology: Point-to-point, point-to-multipoint, peer-to-peer, and Mesh networks

Measurement accuracy: ±0.2% F●S

Zero drift: ±3µV/℃

Sampling period: 1-19999s set independently

Isolation voltage: Maximum withstand voltage 300Vdc

Full-scale drift: ±25ppm/℃; 92dB (minimum CMR @ 50/60Hz)

Recording mode: PC software recording

Baud rate: 1200, 2400, 4800, 9600, 38400, 57600, 115200bps

Power supply: +5/DC or 24V/DC

Power consumption: Less than 0.9W

Bandwidth: 13.1Hz @ 50Hz, 15.72Hz @ 60Hz

Weight: 0.185kg

Body Material: Aluminum Oxide

Dimensions: 14.5cm x 10cm x 1.5cm (length x width x height)

Working temperature: -10℃ ~ +70℃

Operating humidity: 5~95% without condensation
