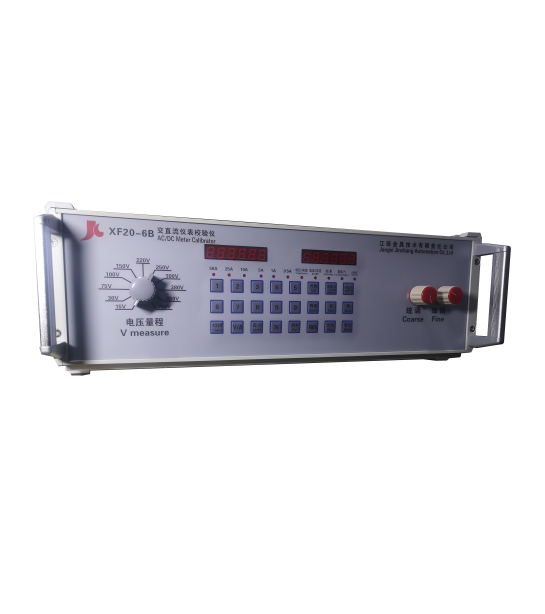

The AC voltage has 5 levels: 10V, 50V, 250V, 500V, and 1000V. Each level can be adjusted arbitrarily within the range of 0~110%, and is equipped with manual fine adjustment.
The DC voltage has 5 levels: 10V, 50V, 250V, 500V, and 1000V. Each level can be adjusted arbitrarily within the range of 0~110%, and is equipped with manual fine adjustment.
The AC current has 6 settings: 0.1A, 0.5A, 1A, 2.5A, 5A, and 10A. Each setting can be adjusted arbitrarily within the range of 0 to 110%, and is equipped with manual fine adjustment.
The DC current has four settings: 0.5A, 1A, 2.5A, and 5A. Each setting can be adjusted arbitrarily within the range of 0 to 110%, and is equipped with manual fine adjustment.
The DC mV setting has three levels: 100mV, 500mV, and 2.5V. Each level can be adjusted arbitrarily within the range of 0~110%, and is equipped with manual fine adjustment.
The DC mA is set with 4 levels: 50μA, 2.5mA, 25mA, and 250mA. Each level can be adjusted arbitrarily within the range of 0~110%, and is equipped with manual fine adjustment.
Frequency adjustment: 45.00Hz~65.00Hz, adjustment increment in 0.01Hz.
AC voltage and AC current output distortion ≤ 0.5%
DC voltage and DC current output ripple coefficient ≤ 1%
Current and voltage standard meter: 0.2% (direct reading/percentage display);
AC current and voltage output stability ≤ 0.05% (100 seconds)
AC output power ≥ 20VA (50A ≥ 40VA), DC output power ≥ 15VA (except for low current).
Power supply: 220V ± 10% AC mains power
Working environment: Temperature 5℃~35℃, humidity ≤75%, no corrosive gases.
Chassis dimensions: 450mm × 450mm × 180mm (width × depth × height)
Weight: 7.5Kg
