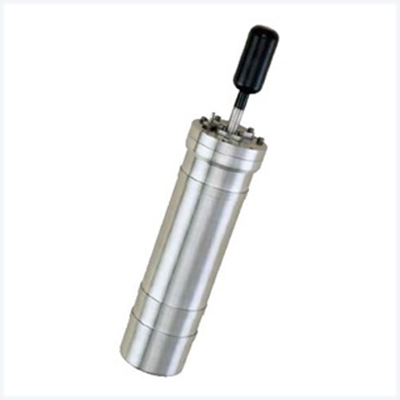

JFE AEMD-USB ເຄື່ອງວັດແທກກະແສໄຟຟ້າແມ່ເຫຼັກສໍາລັບມະຫາສະຫມຸດເລິກ (0~±100cm s-1, 0 ~ 60MPa, 0 ~ 360°)
Velocity
Principle: 2-D electromagnetic velocity sensor
Range: 0 to ±100cm s-1
Resolution: 0.02cm s-1
Accuracy: ±1cm s-1 or ±2%(0 to ±60cm s-1)
Direction
Principle: Hole element
Range: 0 to 360°
Resolution:0.01°
Accuracy: ±2°
Temperature
Principle: Thermistor
Range: -3 to 45ºC
Resolution: 0.001ºC
Accuracy: ±0.02ºC(0 to 35ºC)
Depth
Principle:Semiconductor sensor
Range: 0 to 60MPa
Resolution: 0.002MPa
Accuracy: ±0.3%F
Tilt
Principle: 2-D type
Range: 0 to ±30°
Resolution: 0.01°
Accuracy: ±1°
Memory medium: miniSD card
Data capacity: 1GB provided as standard
AD converter: 16 bit digital conversion
Measuring mode: Continuous mode. Burst mode
Measuring interval: 0.1 to 1.0 s (0.1 s increment). 1 to 600 s (1 s increment)
Burst sampling interval: 1 to 1,440 min (1 s increment)
No. of samples: 1 to 18,000
Battery: CR-V3 lithium / 3.3Ah (four maximum)
Communication: USB 2.0 ( Ver. 1.1 compatible)
Current consumption: 100mA
Housing material: Ti-6Al-4V
Dimensions: Φ85mm×421mm (protection guard not included)
Weight: Approx. 4.1kg in air. Approx. 2.4kg in water
Depth rating: 6,000m depth equivalent
