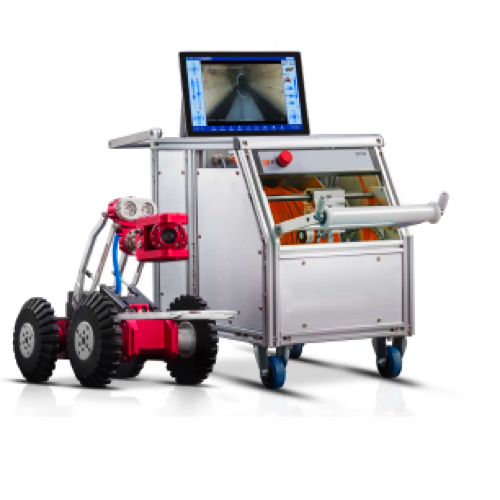

Jeweltest XF ຫຸ່ນຍົນກວດກາທໍ່ສົ່ງ CCTV (360°; DN300–1000)
Main Control
Display: Microsoft Surface tablet, 8G + 128G, touch screen, with keyboard
Connection: Wifi or Internet cable
Control functions: movement, speed, direction, camera rotation, zoom, focus, lighting, electric lift
Status display: real-time date/time, distance, pipe diameter, pressure, speed
Text input: multi-language supported
Cable Reel
Protection: IP63
Cable length: 120m (customizable)
Cable type: 4-core, 2mm diameter each
Tensile strength: 300 kg
Material: polyurethane sheath, waterproof, wear and corrosion resistant
Function: automatic cable take-out and retrieve
Length measurement accuracy: 1 mm
Dimension: 570 × 395 × 475 mm
Crawler
Protection: IP68, 10m water depth
Working temperature: -10°C ~ 50°C
Pipe diameter: 300mm ~ 1000mm
Drive: double 90W motor, 6-wheel drive
Speed: up to 32 m/min
Climbing ability: up to 45°
Lift: electric lift up to 174mm
Lighting: front 8×10W LED, rear 2×10W LED
Rear camera: 1280 × 720
Weight: 16 kg
Camera
Protection: IP68, 10m water depth
Rotation: 360° continuous, ±135° tilt
Image sensor: 2MP CMOS (1920 × 1080)
Viewing angle: 6.7° ~ 68°
Sensitivity: 0.1 Lux
Zoom: 10x optical, 12x digital
Focus: auto / manual
Laser module: crack measurement
Dimension: 155 × 95 × 90 mm
Weight: 1.5 kg
Joystick
Connection: wired
Function: camera rotation, lift control, lighting, speed, direction
Industrial Battery
Charging time: 5 – 6 hours
Output: 220V/50Hz AC or 110V/60Hz AC
Power: 1000W (peak 2000W)
Capacity: 1077Wh (25.9V 41.6Ah)
Battery type: lithium
Working time: ~ 8 hours
Dimension: 345 × 172 × 246 mm
Weight: 9.5 kg
Lidar Scan Module (optional)
Suitable pipe: ≥ 350mm
Scanning frequency: 8 Hz
Accuracy: ±2 cm
Protection: IP68
