JEIOTECH MS-22G ເຄື່ອງປັ່ນແມ່ເຫຼັກ (30~2000rpm) | EMIN.COM.LA

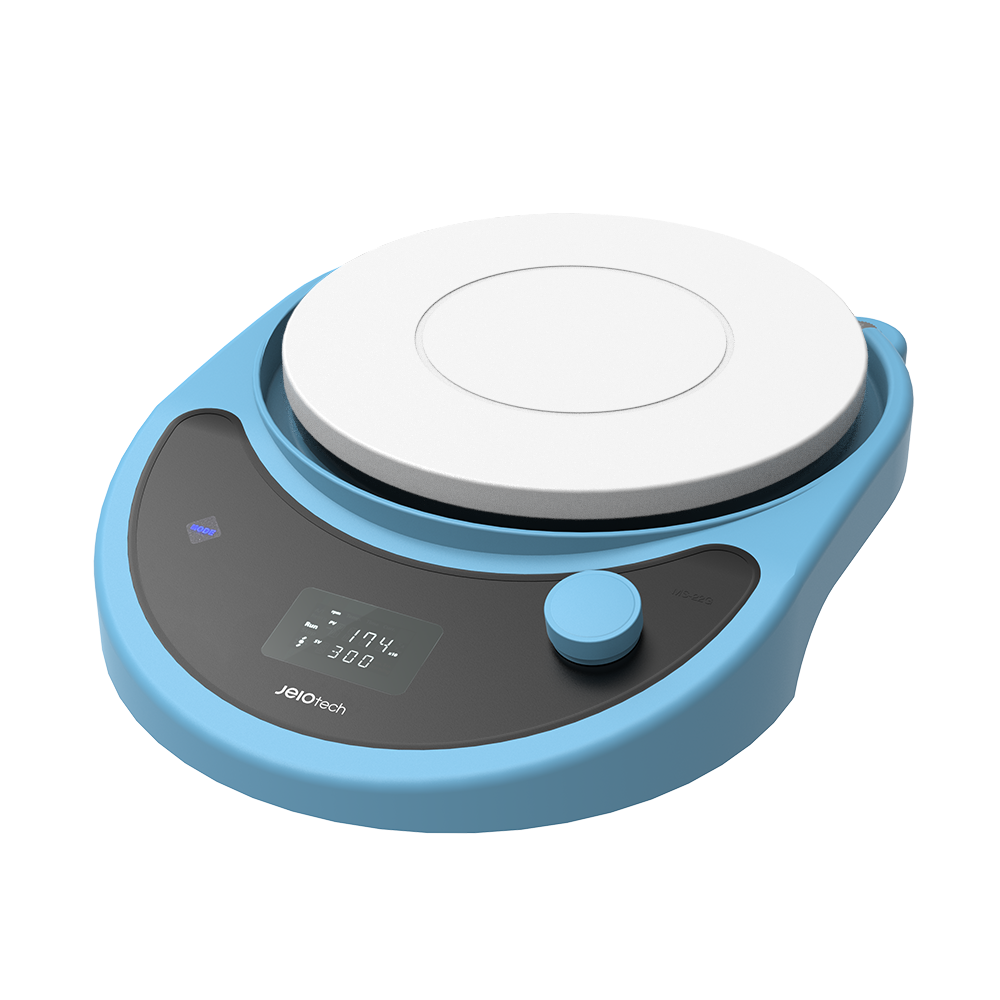

JEIOTECH MS-22G ເຄື່ອງປັ່ນແມ່ເຫຼັກ (30~2000rpm)

Name: JEIOTECH MS-22G ເຄື່ອງປັ່ນແມ່ເຫຼັກ (30~2000rpm)
Brand: JEIOtech

ຜູ້ຜະລິດJEIOtech(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelMS-22G

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Speed Control    Feedback control with PID
Speed Range (RPM)   30~2000
Motor Rating Input / Output (W)    2.9 / 1.6
Load, Max (kg / lbs)    25kg
Material    Poly propylene with non-slip silicon cover
Dimension (mm / inch, W×D×H) 210×280×72 mm
Electrical Requirements    AC 100 ~ 240V, 50 / 60Hz with power adapter
Weight (kg / lbs) 1.75 kg
Protection Class (DIN EN 60529)    IP42

Ordering information

AAH331315BU: MS-22GB Magnetic Stirrer(Digital, ф220mm, Percian Blue), US Plug

AAH331315BK: MS-22GB Magnetic Stirrer(Digital, ф220mm, Percian Blue), KR Plug

AAH331315YU: MS-22GY Magnetic Stirrer(Digital, ф220mm, Orange), US Plug

AAH331315YK: MS-22GY Magnetic Stirrer(Digital, ф220mm, Orange), KR Plug

Plate Covers (Black & White)

Features of MS-G Models

Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
Ergonomic designed, lightweight, easy to operate, and low profile.
Wide top plate.
Two non-slip silicon plate covers (white & black) provided for all MS-B, T, G Models.
Non-slip strength rubber feet.
Sparkless, silent and durable BLDC motor.
Built-in thermal shutdown and current limit protection.
Bright and vivid VFD and responsive touch screen buttons.
Gradual start-up to protect users against splashing of samples.
M12 threaded hole to hold a support rod.

Model			MS-17G	MS-22G
Technical Data	Speed Control		Feedback control with PID
	Stirring Capacity (Liter, H2O)		4	5
	Speed Range (RPM)		30 to 2,000
	Speed Display		VFD
	Motor Rating Input / Output (W)		2.9 / 1.6
	Magnetic Bar (Ø×L, mm / Inch), Max.		8×40 / 0.31×1.57	10×50 / 0.39×1.97
	Load, Max (kg / lbs)		20 / 44.09	25 / 55.12
Top Plate	Material		Poly propylene with non-slip silicon cover
Top Plate	Dimension (mm / inch, Ø)		170 / 6.69	220 / 8.66
General Data	Body Material		Poly propylene
	Dimension (mm / inch, W×D×H)		210×280×72 / 8.27×11.02×2.82	260×360×72 / 10.24×14.17×2.82
	Weight (kg / lbs)		1.35 / 2.98	1.75 / 3.86
	Electrical Requirements		AC 100 ~ 240V, 50 / 60Hz
	Power Consumption (W)		6
	Protection Class (DIN EN 60529)		IP42
Cat. No.	Persian Blue	KR plug	AAH331215BK	AAH331315BK
	Persian Blue	US plug	AAH331215BU	AAH331315BU
	Yellow	KR plug	AAH331215YK	AAH331315YK
	Yellow	US plug	AAH331215YU	AAH331315YU
