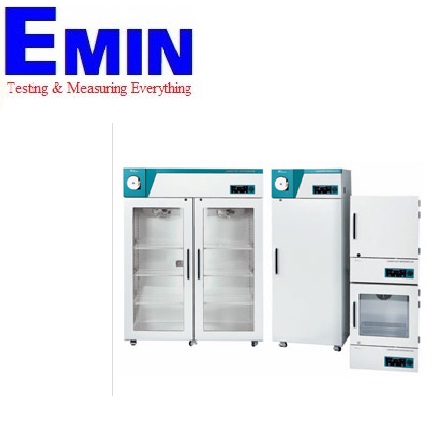

Jeiotech CLG-650 Laboratory Refrigerators

Name: Jeiotech CLG-650 Laboratory Refrigerators
Brand: JEIOtech

ຜູ້ຜະລິດJEIOtech

ModelCLG-650

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Model: CLG-650
Manufacture: Jeiotech
Origin: Korea
Warranty: 12 months

Chamber volume [L / cu ft]   636 lit
Display    VFD and touch-screen
Temperature range [℃/ ℉]    2 ~ 10 / 35.6 ~ 50
Refrigerator [Hp]    1/3
Door type    Heated glass or Solid
Meterial Stainless steel #304, Steel, 1.0 mm, powder coating
Dimensions [W×D×H] : Interior [mm / inch]: 650×675×1450 mm
                                    Exterior [mm / inch] 770×815×1965 mm
Electrical Requirements [230V, 50Hz]    4.0 A
Cat. No.    Solid door type    AAHE1022K
                Glass door type    AAHE1122K

Datasheet

Safety Features

Automatic shutdown of fan for minimization of heat loss when the door is opened.
Over current protection, high and low temperature alerts, key pad button lock function.
Open door alert, built in door lock.

Operational Features

Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons.
- Easy temperature unit conversion between °C and °F
Optimizing defrost systems.
- Innovative auto-defrost system automatically activated when detecting trace amount of frost build-up
in the evaporator for CLG-150, 300, 650.
- None defrost system needed for CLG-850, 1400 due to its dual refrigerating system.
Three types of recorders to choose from (optional)
- Dot recorder (6 point)
- Chart recorder (6”, 24hr/7days)
- Thermal line recorder

Constructional Features

High-quality 304 grade stainless steel chamber.
Fully insulated chamber ensuring minimal chamber’s temperature fluctuation.
Clear observation of stored samples.
- Tempered glass door with built in wire heater.(for the models with glass doors only)
- Built-in bright fluorescent lighting.(except for CLG-150)
Built-in fluorescent lighting for all refrigerators (except for CLG-150 Models)
Easy to store samples with included wire shelves.
High thermal efficiency evaporation system, made of low corrosive materials.
Fully insulated chamber ensuring minimal chamber temperature fluctuation
Built-in 50mm diameter cable port for external probes or wires.(except for CLG-150)
High thermal efficiency evaporation system made of low corrosion material
Dedicated stand with casters and stacking kit for 150 Models for use in labs with limited space (optional)
Various accessories.

Model		CLG-150	CLG-300	CLG-650	CLG-850	CLG-1400
Chamber volume [L / cu ft]		156 / 5.5	319 / 11.3	636 / 22.5	843 / 29.7	1395 / 49.3
Display		VFD and touch-screen
Temperature range [℃/ ℉]		2 ~ 10 / 35.6 ~ 50
Refrigerator [Hp]		1/8	1/6	1/3	1/6×2ea	1/4×2ea
Door type		Heated glass or Solid
Lighting		-	18W Fluorescent lamp	32W Fluorescent lamp
Meterial	Interior	Stainless steel #304
	Exterior	Steel, 1.0 mm, powder coating
	Insulation	60mm, Polyurethane foam
Dimensions [W×D×H]	Interior [mm / inch]	550×580×490 / 21.7×22.8×19.3	550×580×1000 / 21.7×22.8×39.4	650×675×1450 / 25.6×26.6×57.1	750×775×1450 / 29.5×30.5×57.1	1425×675×1450 / 56.1×26.6×57.1
	Exterior [mm / inch]	683×791×870 / 26.9×31.1×34.4	670×719×1515 / 26.4×28.3×59.6	770×815×1965 / 30.3×32.1×77.4	870×915×1965 / 34.3×36×77.4	1545×815×1965 / 60.8×32.1×77.4
	Net weight [kg / Ibs]	100 / 220.4	130 / 286.6	210 / 463.0	260 / 573.2	350 / 771.6
Electrical Requirements [120V, 60Hz]		4.0 A	4.5 A	6.5 A	9.0 A	13.0 A
Cat. No.	Solid door type	AAHE1003U	AAHE1013U	AAHE1023U	AAHE1033U	AAHE1043U
Cat. No.	Glass door type	AAHE1103U	AAHE1113U	AAHE1123U	AAHE1133U	AAHE1143U
Electrical Requirements [230V, 60Hz]		2.0 A	2.3 A	4.0 A	5.0 A	6.0 A
Cat. No.	Solid door type	AAHE1001K	AAHE1011K	AAHE1021K	AAHE1031K	AAHE1041
Cat. No.	Glass door type	AAHE1101K	AAHE1111K	AAHE1121K	AAHE1131K	AAHE1141K
Electrical Requirements [230V, 50Hz]		2.0 A	2.3 A	4.0 A	5.0 A	6.0 A
Cat. No.	Solid door type	AAHE1002K	AAHE1012K	AAHE1022K	AAHE1032K	AAHE1042K
Cat. No.	Glass door type	AAHE1102K	AAHE1112K	AAHE1122K	AAHE1132K	AAHE1142K
