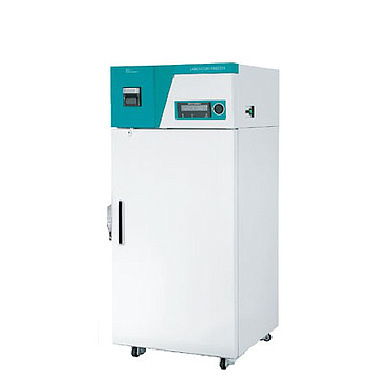

JEIOTECH FHG-150 Freezers ຫ້ອງທົດລອງ (156L, -15 ~ 0℃) | EMIN.COM.LA

JEIOTECH FHG-150 Freezers ຫ້ອງທົດລອງ (156L, -15 ~ 0℃)

Name: JEIOTECH FHG-150 Freezers ຫ້ອງທົດລອງ (156L, -15 ~ 0℃)
Brand: JEIOtech

ຜູ້ຜະລິດJEIOtech(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelFHG-150

P/NAAHE2102K

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Chamber volume [L / cu ft]    156 / 5.5
Display    VFD and touch-screen
Temperature range [℃/ ℉]    2 ~ 10 / 35.6 ~ 50
Refrigerator [Hp]    1/2
Meterial Stainless steel #304, Steel, 1.0 mm, powder coating
Dimensions [W×D×H] : Interior [mm / inch]::550x580x490 mm
                                    Exterior [mm / inch]: 763x871x975mm
Electrical Requirements [230V, 50Hz]    3.5 A
Cat. No.    Solid door type       AAHE2102K

Datasheet

Safety Features

Automatic shutdown of fan for minimization of heat loss when the door is opened.
Over current protection, high and low temperature alerts, key pad button lock function.
Open door alert, built in door lock.

Operational Features

Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons.
- Easy temperature unit conversion between °C and °F
Dual Defrost system
- Innovative auto-defrost system automatically activated when detecting trace amount of frost build-up
in the evaporator
- Additional manual defrost system for immediate frost removal
Three types of recorders to choose from (optional)
- Dot recorder (6 point)
- Chart recorder (6”, 24hr/7days)
- Thermal line recorder

Constructional Features

High-quality 304 grade stainless steel chamber.
Fully insulated chamber ensuring minimal chamber’s temperature fluctuation.
Air-tight door seal with vice lock door closing mechanism for safe storage of samples.
Fully insulated chamber ensuring minimal chamber temperature fluctuation.
Easy to store samples with included wire shelves.
High thermal efficiency evaporation system made of low corrosion material
Built-in 50mm diameter cable port for external probes or wires. (except for FHG/FMG/FCG-150)
Dedicated stand with casters and stacking kit for FHG/FMG/FCG- 150 Models for use in labs with limited space(optional)
Various accessories

Model		FHG-150	FHG-300	FHG-650
Chamber Volume (L / cu ft)		156 / 5.5	319 / 11.3	647 / 22.8
Display		VFD and touch-screen
Temperature Range (℃ / ℉)		-15 to 0 / 5 to 32
Refrigerator (Hp)		1 / 2	3 / 4	1
No. of Wire Shelves (included / max.)		2 / 6	3 / 11	3 / 17
No. of Wire Shelves, Slide (max., optional)		4	7	11
No. of Drawer Shelves, Slide (max., optional)		3	5	8
Max. Load per Shelf (kg / Ibs)		26 / 57.3	26 / 57.3	30 / 66.1
Door Type		Solid
Material	Interior	Stainless steel #304
	Exterior	Steel, 1 mm, powder coating
	Insulation	100mm, Polyurethane foam
Dimension (W×D×H)	Interior (mm / inch)	550x580x490 / 21.7x22.8x19.3	550×580×1000 / 21.7×22.8×39.4	650×675×1450 / 25.6×26.6×57.1
	Exterior (mm / inch)	763x871x975 / 30x34.3x38.4	750x799x1610 / 29.5x31.5x63.4	950x885x1980 / 37.4x34.8x78
	Net Weight (kg / lbs)	120 / 264.6	150 / 330.7	233 / 513.7
Electrical Requirements (230V, 60Hz)		3.5A	3.8A	3.8A
Cat. No.	Solid Door Type	AAHE2101K	AAHE2111K	AAHE2121K
Electrical Requirements (230V, 50Hz)		3.5A	3.8A	3.8A
Cat. No.	Solid Door Type	AAHE2102K	AAHE2112K	AAHE2122K
