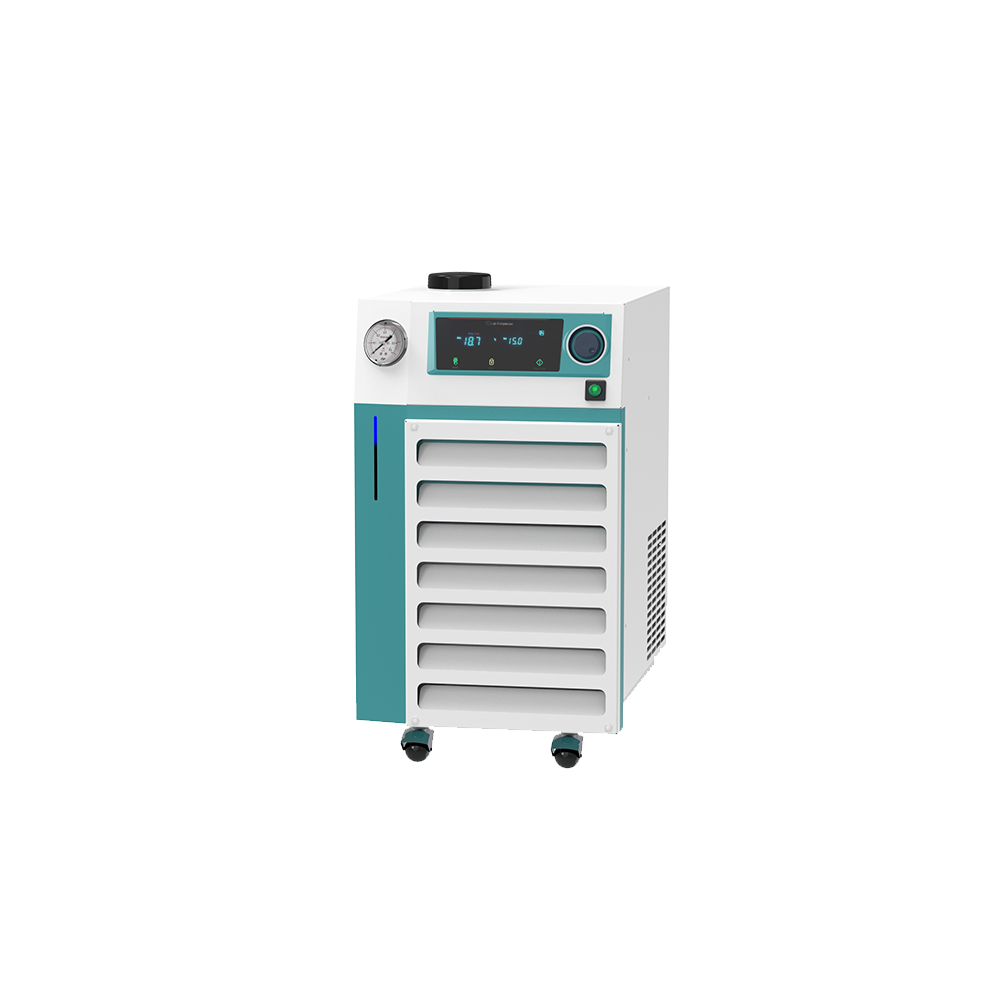

JEIOTECH HL-05 Recirculating Coolers (-20~40℃, 1/5hp)

Name: JEIOTECH HL-05 Recirculating Coolers (-20~40℃, 1/5hp)
Brand: JEIOtech
Availability: OutOfStock

ຜູ້ຜະລິດJEIOtech

ModelHL-05

P/NAAH65002K

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Temperature Range(℃ / ℉)    -20 to 40 / -4 to 104
Temperature Stabilityat 15℃, (±℃ / ℉)    1 / 1.8
Cooling Capacity: at 20℃ (kw)-0.6/ at 10℃ (kw)    -0.5/ at 0℃ (kw)- 0.35
                         at -10℃ (kw)    0.18/ at -20℃ (kw)    0.04
Pump: Max. Flow Rate (L / min, gal / min)    50 / 13.2
         : Max. Pressure (bar / psi)    1.0 / 14.5
Dimension: Overall (WxLxH, mm / inch) 405×620×710 /15.9×24.4×28.0
Net Weight (kg / Ibs) 62.85 /138.6
Electric Requirement (230V, 50Hz)

Operating features

• Temperature range is from -20℃~40℃.
• Bright LED water level indicator can be easily identified.
• Low fluid level and dry-running protection when triggered shows an error symbol on the display and an
   audible sound.
• If the equipment operates at 40℃ or above due to the external environment, user can simply identify the
   error with a visual or an audible sound.
• Designed to simplify operation with a touch screen type display.
  - Easy-to-read VFD display with interactive touch keys.
  - Setting and resolution indication 0.1℃/℉.
  - Quick keypad lock prevents accidental parameter changes.
  - Signal indicator for operation status.

Constructional features

• The refrigerating system is designed to reduce energy consumption and to maximize in refrigerating
   efficiency.
• Eco-friendly R-404A / R507 refrigerant is used to prevent environmental pollution. Double service valve is
   used to prevent refrigerant leakage.
• Removable gridded vent for reducing condenser contamination and to facilitate cleanliness.
• A wide (Ø120mm / 4.72″) solution inlet is for easy and safe pouring of solution into the recirculating cooler.
• Pressure gauge comes standard for observing the pump pressure
• The refrigeration system can be observed easily to diagnostic at a glance by high / low pressure gauges.
   (HL-25H, 35H, 45H, 55H models)
• Wheels allow for easy mobility.
• The beautifully designed and compact.
• Different types of pumps come standard with the recirculating cooler to provide versatility.
• Warning alarm/monitoring system.
  - Over temperature.
  - Lack of bath solutions.
• Variety of accessories is available to meet user’s different lab environment needs. (Refer to accessories)

Model		HL -05	HL -10	HL -15	HL -20	HL -15H	HL -20H	HL -25H	HL -35H	HL -45H²⁾	HL -55H²⁾
Temperature¹⁾ (bath fluid : Ethtylene glycol mix 1:1 Water)	Working Temperature range (℃ / ℉)	-20 to 40 / -4 to 104
Temperature¹⁾ (bath fluid : Ethtylene glycol mix 1:1 Water)	Temperature stability at 15℃, (±℃ / ℉)	1 / 1.8
Cooling capacity (bath fluid : Ethtylene glycol mix 1:1 Water)	at 20℃ (kw)	0.60	0.07	1.45	1.80	1.45	1.80	2.50	3.30	6.50	7.10
	at 10℃ (kw)	0.50	0.60	1.15	1.50	1.15	1.50	1.80	2.30	4.50	6.00
	at 0℃ (kw)	0.35	0.42	0.86	1.15	0.86	1.15	1.10	1.70	3.00	4.10
	at -10℃ (kw)	0.18	0.32	0.62	0.85	0.62	0.85	0.65	1.00	2.10	2.50
	at -20℃ (kw)	0.04	0.14	0.30	0.40	0.30	0.40	0.40	0.55	1.20	1.50
Pump	Max. flow rate (L / min, gal / min)	50 / 13.2				40 / 10.57				70 / 18.49
Pump	Max. pressure (bar / psi)	1.0 / 14.5				2.8 / 40.6				6 / 87.0
Dimension	Max,. filling capacity (L, cu ft)	10 / 0.35		15 / 0.53		15 / 0.53		25 / 0.88		40 /1.41
	For tubing dia (mm / inch)	12.7 / 0.5				20 / 0.79
	Overall (WxLxH, mm / inch)	405×620×710 / 15.9×24.4×28.0		515×715× 835 / 20.3×28.1×32.9		515×715× 835 / 20.3×28.1×32.9		550×900×1140 / 21.7×35.4×44.9		605×1045×1300 / 23.8×41.4×51.2
	Net weight (kg / Ibs)	62.85 / 138.6	64.85/ 143.0	86.5 / 190.7	87.35 / 192.9	91.8 / 202.4	92.65 / 204.3	141.3 / 310.9	146.3 / 321.9	171 ±10 / 377 ±22	176 ±10 / 388 ±10
Electric requirement (230V, 60Hz)		5.0A	5.5A	6.5A	7.5A	6.5A	7.5A	9.5A	13.5A
Cat. No.		AAH 65001	AAH 65011	AAH 65021	AAH 65031	AAH 65121	AAH 65131	AAH 65141	AAH 65151	-
