Internal Volume (L / cu ft) :16 /0.6
Gauge Range (Mpa) 0 to -0.1 (Analog)
Nozzle (mm / inch, Ø) 9.5 / 0.37
Max. Permissible Vacuum (bodies) 1.33×10-4 Mpa (Analog)
Material
Bodies PC (Polycarbonate)
Perforated Sample Tray PC (Polycarbonate)
Drying Agent Tray / Locker PP (Polypropylene)
Vacuum Seal Silicone Rubber
Dimension: Ø308 x 449 mm
Net Weight(kg ): 2.9 kg

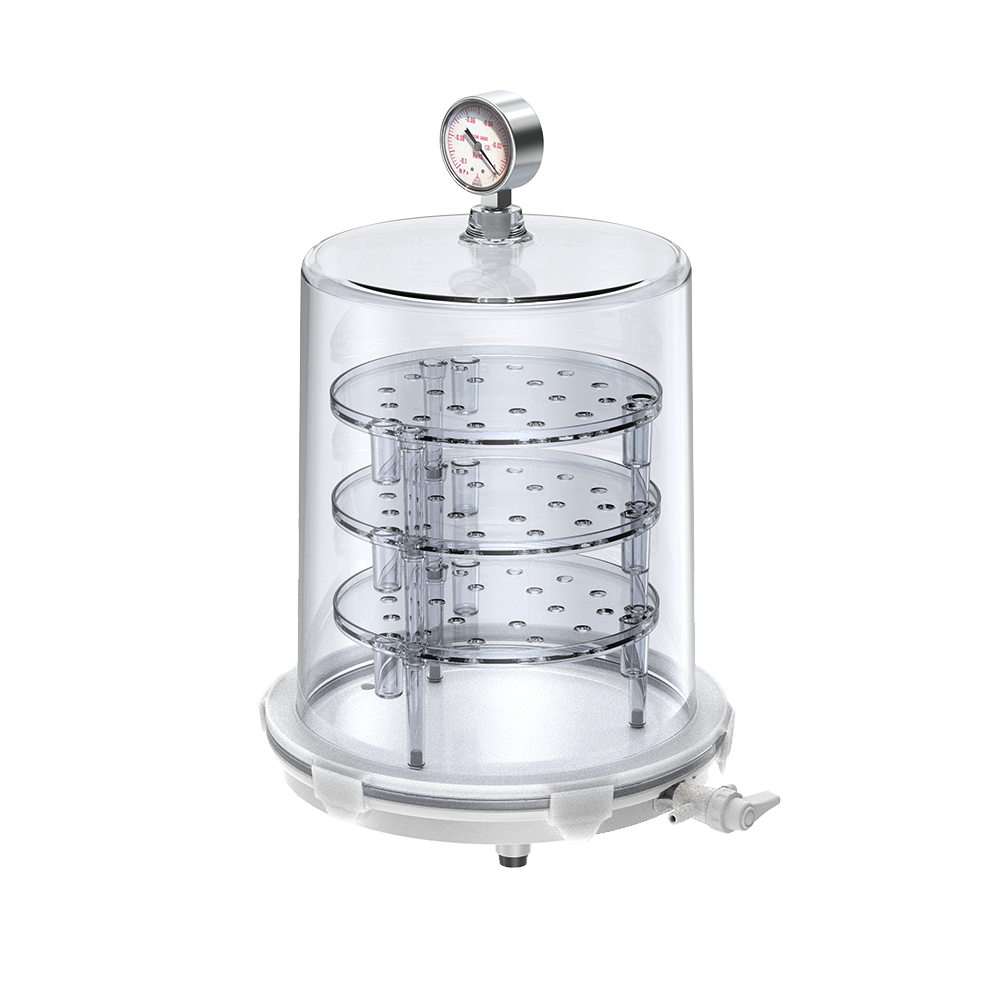

Cat. No. : Clear body with Vacuum gauge (G)
| Model 1) | VDP-25/25G VDP-25U/25UG | VDP-30/30G VDP-30U/30UG | |
|---|---|---|---|
Internal volume (L / cu ft) | 16 / 0.6 | 25 / 0.9 | |
Gauge range (Mpa) | 0 to -0.1 | ||
Nozzle (mm / inch, Ø) | 9.5 / 0.37 | ||
Max. permissible vacuum (Bodies) | 1.33×10-4 Mpa | ||
Material | Body / Base | Polycarbonate | |
Perforated sample tray | |||
Locker | Polypropylene | ||
Vacuum seal | Silicone rubber | ||
Dimension (I.D. × H) | Exterior (mm / inch) | Ø308×374(449) / Ø12.1×14.7(17.7) | Ø385×384(459) / Ø15.2×15.1(18.1) |
Net weight (kg / lbs) | 2.7 / 5.9 | 4.0 / 8.8 | |
Cat. No. | Clear body | AAAD3011 | AAAD3021 |
Clear body with Vacuum gauge (G) | AAAD3111 | AAAD3121 | |
UV block effect body (U) | AAAD3211 | AAAD3221 | |
UV block effect body with Vacuum gauge (UG) | AAAD3311 | AAAD3321 | |
1) G models come standard with a vacuum gauge
U models are translucent(amber-colored) vacuum desiccators with ultraviolet block effect.
※ RoHS except for VDP-U models.
