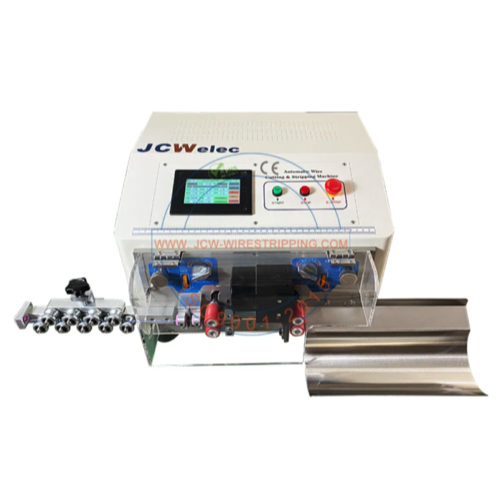

JCW JCW-CS03D ເຄື່ອງຕັດສາຍສັ້ນອັດຕະໂນມັດ (0.03 - 6.0 mm², 27 - 999999 mm)

Function: Wire measuring, Cut into length, Full stripping, Partial stripping, Middle strip, Length correction

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass

Conductor cross-sections: 0.03 - 6.0 mm² [AWG30 - AWG 10]

Cutting length (L): 27 - 999999 mm

Cutting length accuracy: 0.002 x L

Stripping length: Front (right) side - max 40 mm, Rear (left) side - max 30 mm

Production rate: 4600 pcs/h by 50 mm wire length

Data library: 100 programs

Display: 4.3" color touchscreen, English / Chinese [Other languages on request]

Compatible peripherals: Wire prefeeder, robot arm, conveyor belt

Wire feeding: Metal roller [Urethane roller on request]

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.4 - 0.7 MPa (clean and dry air)

Dimensions: Machine - L 460 x W 470 x H 350 mm, Straightener - 300 mm

Weight: 33 KG

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

• Designed for ultra-short wire cutting and stripping

• Cutting length reaches 27mm while dual-end stripping

• Metal and urethane rollers for selection

• User-friendly multi-language display

• Fully programmable
