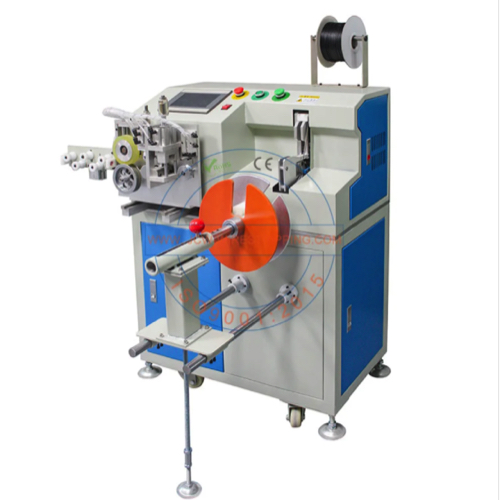

JCW JCW-WB05C ສາຍແລະສາຍການວັດແທກ winding bundling ເຄື່ອງ (200 - 300 mm, φ 1 - 15 mm)

Function: Measure cable, feeding length, laying cable, automatic cut cable, twist cable tie. Feeding speed, winding speed, winding cycles, twisting cycles, cable tie cut length.

Wire Diameter: φ 1 - 15 mm [Customizable]

Cable Tie Length: 200 - 300 mm [Customizable]

Tying Diameter: 40-80 mm [Optional 8-30 mm / 18-45 mm]

Cable Roll Inner Diameter: 50-300 mm

Winding Speed: 1 - 10 cycles/s

Cable Tie Twist Cycle Time: 0.6 s

Cable Weight: 3 KG [Customizable to 50 KG]

Data Library: 100 programs

Display: 7" color touchscreen, English / Chinese [Other languages on request]

Compatible Peripherals: Cable prefeeding machine

Power Supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air Supply: 0.4 - 0.7 MPa (clean and dry air)

Dimensions: L 1500 x W 610 x H 1100 mm

Weight: 150 KG

• Compact, free-standing, fully programmable and mobile device

• Wind wire, cable and wire rope into coils or onto spools

• Wind the required length of electrical, optical cables or other similar materials

• Automatic cable laying device synchronized with rotational motion

• Operation without constant, direct supervision

• Precise feeding, uniform laying
