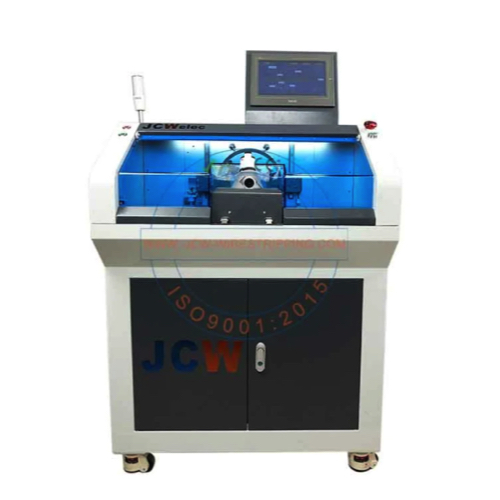

JCW JCW-S618 ສາຍໄຟແຮງດັນສູງ Rotate Stripping Shield ເຄື່ອງປຸງແຕ່ງ (1 - 70 mm)

Cable type: High voltage cables used in electric vehicles

Cable diameter: 6 - 18 mm [optional φ22mm, 120mm²]

Stripping length (L): 1 - 70 mm [optional 15-150mm]

Shield remain: ≥ 5 mm

Rated power: 5000 W

Display: 7" color touchscreen, English / Chinese [other languages on request]

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.5 - 0.8 MPa (clean and dry air)

Dimensions: L 820 x W 820 x H 1350 mm

Weight: 200 KG

• Multi-step processing for high voltage EV charging cable

• Jacket stripping, inner stripping, foil & shield cutting, shield folding

• Compact solution for shield processing

• Precise processing through exact, servo-controlled positioning

• Secure protection of the inner conductor when trimming shield

• Central extraction unit for high purity of the products and modules
