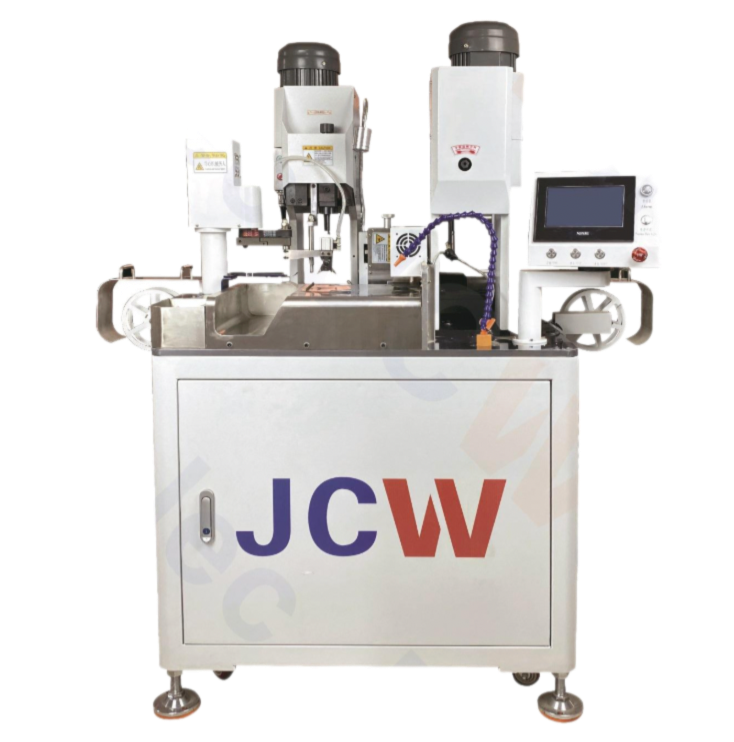

JCW JCW-CST20 ເຄື່ອງ Crimping Wire ອັດຕະໂນມັດເຕັມຄວາມໄວສູງດ້ວຍຄວາມໄວສູງ (0.05-2 mm², 26-99999 mm, 0.5-35 mm, 20 KN)
Function: Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, Optical positioning, OTP applicator, Mini-style applicator, etc.
Wire cross-section: 0.05-2 mm² (AWG 30-14)
Strip length: 0.5-35 mm [Over 12mm, only partial-strip]
Cut length (L): 26-99999 mm
Cut length tolerance: ± 0.002 x L
Crimp force: 20 KN (2.0 tons) [40 KN on request]
Stroke: 30 MM [40 MM on request]
Detector: Wire lack, Terminal lack, Terminal crimping, Wire knot, Air pressure
Production rate: 4000-4800 pcs/h by 30-200 mm wire length
Data library: 100 programs
Display: 7" touch screen, English / Chinese [other languages on request]
Power supply: AC 110-220V ± 10%, 50/60 Hz
Air supply: 0.5-0.6 MPa [ Clean and dry air]
Weight: 360KG
Dimensions: L 1380 x W 750 x H 1580mm
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
